IP68 Waterproof USB Socket (12V / 24V Compatible) Dual Port USB A
  • IP68 Waterproof USB Socket (12V / 24V Compatible) Dual Port USB A
  • IP68 Waterproof USB Socket (12V / 24V Compatible) Dual Port USB A
  • IP68 Waterproof USB Socket (12V / 24V Compatible) Dual Port USB A

IP68 Waterproof USB Socket (12V / 24V Compatible) Dual Port USB A

A13-240B
Note

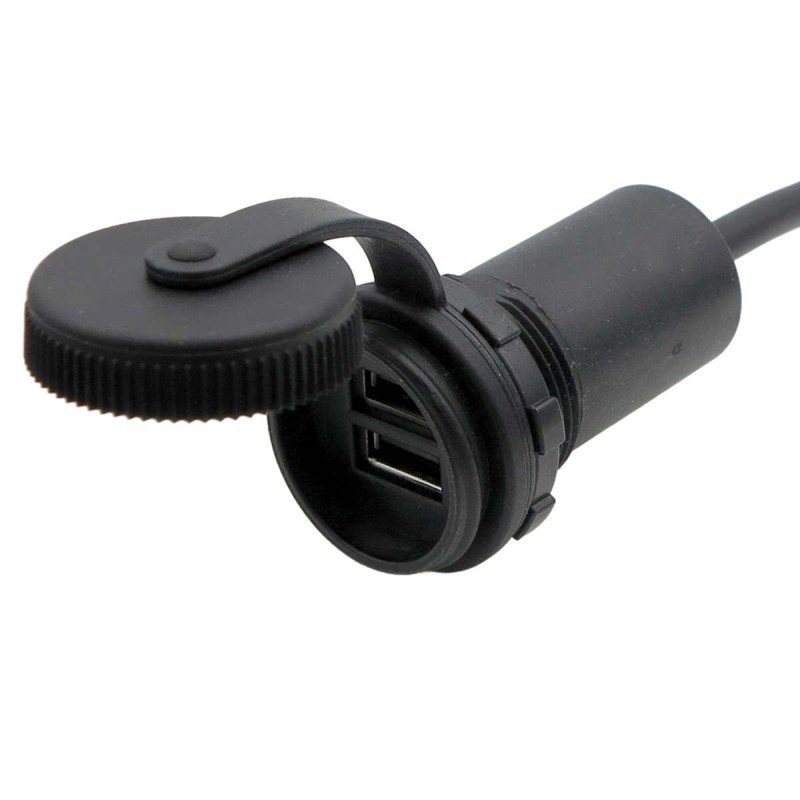

IP68 Waterproof USB Socket with 2 x USB A charging ports and protective waterproof cover which provides an IP68 weather proof seal when in place. Suitable for both 12V & 24V input. High Performance 2.1A 5V output (maximum) for each socket. Panel mountable with a cut-out diameter of 29mm. Supplied with 170mm free cable sealed into the reverse of the unit. Compliant with RoHS. A13-240B-BB3.



Each socket is capable of charging speed of 10W at 12V and up to 20W at 24V and capable of charging mobile phones and tablets.

Remise sur la quantité

Quantité Prix unitaire Vous économisez
5 12,33 £ Jusqu'à 10,85 £
25 10,88 £ Jusqu'à 90,52 £
100 9,43 £ Jusqu'à 507,07 £
14,50 £

14,50 £ Tax incl.
Quantité
55 Produits

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

A 12 and 24 volt USB power socket for car, bike or marine use. This is dual port USB charger power outlet suitable for new installations. Maximum output is 2.1A 5V from each socket and supplied with a waterproof sealing cover to prevent water ingress into the socket.



Input Voltage : 10-30Vdc

Input Current Max : 3A

Standby Power Usage : <0.3W

USB A Power Rating : QC3 2.4A 5V Output

True IP68 rating with cover in place.

Operating Temp : -20 to +45ºC

Supplied with a ring nut for easy installation.

Détails du produit
SCI (Shin Chin)
A13-240B
55 Produits
Nouveau
Documents joints
Téléchargement
IP68 USB Drawing

IP68 Waterproof USB Socket Drawing

Téléchargement (40.54KB)
Avis

Aucun avis n'a été publié pour le moment.

Donnez votre avis

IP68 Waterproof USB Socket (12V / 24V Compatible) Dual Port USB A

IP68 Waterproof USB Socket (12V / 24V Compatible) Dual Port USB A

IP68 Waterproof USB Socket with 2 x USB A charging ports and protective waterproof cover which provides an IP68 weather proof seal when in place. Suitable for both 12V & 24V input. High Performance 2.1A 5V output (maximum) for each socket. Panel mountable with a cut-out diameter of 29mm. Supplied with 170mm free cable sealed into the reverse of the unit. Compliant with RoHS. A13-240B-BB3.



Each socket is capable of charging speed of 10W at 12V and up to 20W at 24V and capable of charging mobile phones and tablets.
