True IP68 Waterproof USB Socket (12V & 24V)
  • True IP68 Waterproof USB Socket (12V & 24V)
  • IP68 Waterproof USB Socket (12V / 24V Compatible) Dual Port USB A
  • IP68 Waterproof USB Socket (12V / 24V Compatible) Dual Port USB A

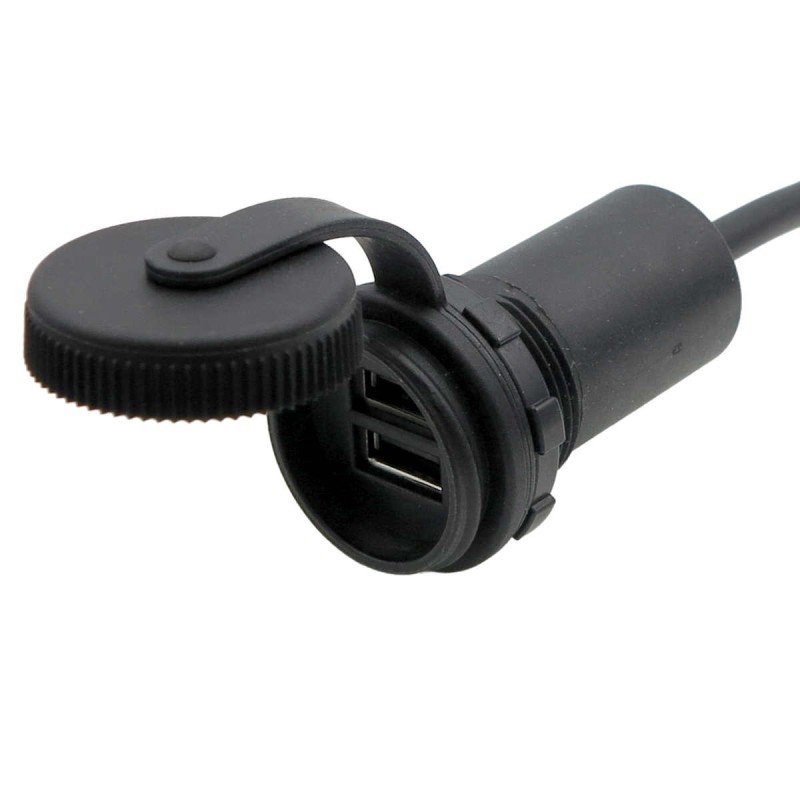

IP68 Waterproof USB Socket (12V / 24V Compatible) Dual Port USB A

A13-240B
Rating

IP68 Waterproof USB Socket with 2 x USB A charging ports and protective waterproof cover which provides an IP68 weather proof seal when in place. Suitable for both 12V & 24V input. High Performance 2.1A 5V output (maximum) for each socket. Panel mountable with a cut-out diameter of 29mm. Supplied with 170mm free cable sealed into the reverse of the unit. Compliant with RoHS. A13-240B-BB3.



Each socket is capable of charging speed of 10W at 12V and up to 20W at 24V and capable of charging mobile phones and tablets.

Volume discounts

Quantity Unit price (Ex VAT) You Save
5 £12.33 Up to £10.85
25 £10.88 Up to £90.52
100 £9.43 Up to £507.07
£14.50

£14.50 Inc VAT
Quantity
55 Items

  Delivery

We aim to despatch orders received prior to 2pm on the same day as ordered.

  Returns

30 day returns.

Description

A 12 and 24 volt USB power socket for car, bike or marine use. This is dual port USB charger power outlet suitable for new installations. Maximum output is 2.1A 5V from each socket and supplied with a waterproof sealing cover to prevent water ingress into the socket.



Input Voltage : 10-30Vdc

Input Current Max : 3A

Standby Power Usage : <0.3W

USB A Power Rating : QC3 2.4A 5V Output

True IP68 rating with cover in place.

Operating Temp : -20 to +45ºC

Supplied with a ring nut for easy installation.

Product Details
SCI (Shin Chin)
A13-240B
55 Items
New
Attachments
Download
IP68 USB Drawing

IP68 Waterproof USB Socket Drawing

Download (40.54KB)
Reviews

No customer reviews for the moment.

Write your review

IP68 Waterproof USB Socket (12V / 24V Compatible) Dual Port USB A

IP68 Waterproof USB Socket (12V / 24V Compatible) Dual Port USB A

IP68 Waterproof USB Socket with 2 x USB A charging ports and protective waterproof cover which provides an IP68 weather proof seal when in place. Suitable for both 12V & 24V input. High Performance 2.1A 5V output (maximum) for each socket. Panel mountable with a cut-out diameter of 29mm. Supplied with 170mm free cable sealed into the reverse of the unit. Compliant with RoHS. A13-240B-BB3.



Each socket is capable of charging speed of 10W at 12V and up to 20W at 24V and capable of charging mobile phones and tablets.
