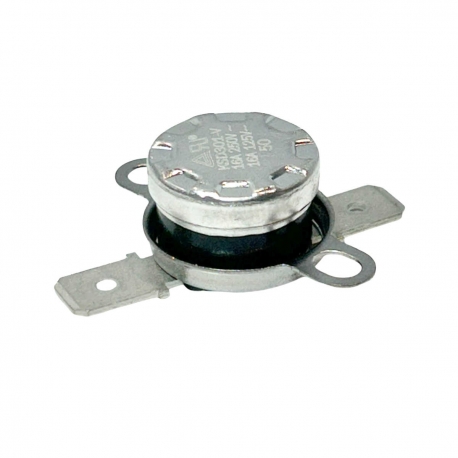

Thermostat Bimétallique 60ºC NF
  • Thermostat Bimétallique 60ºC NF
  • Thermostat Bimétallique 60ºC NF

Thermostat Bimétallique 60ºC NF

KSD301A-60AF-BTC
Note

Thermostat Bimétallique / 1/2" / Réarmement Automatique / 16A 230V / NF / Tolérance ±3 Degrés C en Ouvert ±7 Degrés C en Fermeture / Cosses Plates 6.3mm Horizontal / 60 Deg. C Normal Fermeture Interrupteur Thermique / Circuit Ouvert à Augmentation de Température à 60 Degrés C / Réinitialiser Température 40 Degrés C / Corps de Bakélite / TUV & UL / RoHS / KSD301A-60AF-BTC.

Remise sur la quantité

Quantité Prix unitaire Vous économisez
25 1,07 £ Jusqu'à 14,44 £
50 0,94 £ Jusqu'à 35,58 £
100 0,85 £ Jusqu'à 80,44 £
600 0,74 £ Jusqu'à 544,50 £
1,65 £

1,65 £ Tax incl.
Quantité
1468 Produits

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

16 Amp 250Vac rated automatic reset thermal cut out suitable for loads of around 3kw (maximum). Supplied with a loose bracket that can be rotated for mounting. This thermal cut out is normally closed (NC), meaning that it is normally in the on position. The thermal cut out will open (turn off) on reaching 60 degrees celsius and reset on temperature drop to 40 degrees celsius. This is a 1/2 inch thermal cut out, not to be confused with the higher rated 3/4 inch thermal cut outs more suitable for higher loads typically found in more powerful power showers. Supplied with 6.3mm horizontal quick connect terminals and enclosed in a ceramic body. Carries TUV approval at 16A 250Vac & American UL approval at 16A 125Vac and complies with RoHS.

Détails du produit
KSD301A-60AF-BTC
1468 Produits
Nouveau

Fiche technique

Termination
6.3mm QC Terminals
Current Rating
16A
Switching Cycles
100,000
Switching Cycles (16A 250V)
60,000
Cap Material
Aluminium
Body Material
Bakelite
Contact Resistance
Less Than 50 m Ohm
Maximum Ambient Termperature
140 Degrees C
Fixing Hole Centres
24mm
Documents joints
Téléchargement
Avis

Aucun avis n'a été publié pour le moment.

Donnez votre avis

Thermostat Bimétallique 60ºC NF

Thermostat Bimétallique 60ºC NF

Thermostat Bimétallique / 1/2" / Réarmement Automatique / 16A 230V / NF / Tolérance ±3 Degrés C en Ouvert ±7 Degrés C en Fermeture / Cosses Plates 6.3mm Horizontal / 60 Deg. C Normal Fermeture Interrupteur Thermique / Circuit Ouvert à Augmentation de Température à 60 Degrés C / Réinitialiser Température 40 Degrés C / Corps de Bakélite / TUV & UL / RoHS / KSD301A-60AF-BTC.

Donnez votre avis
