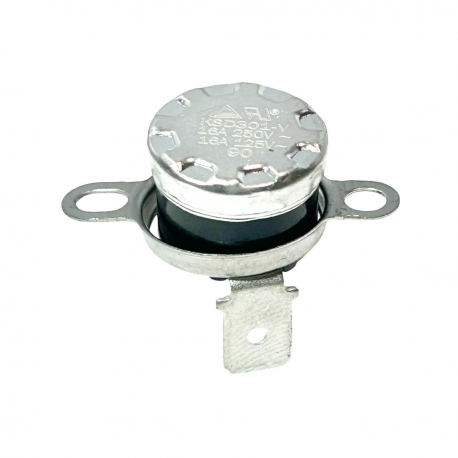

Thermostat Bimétallique 60ºC N/O

16 Amp 250Vac rated automatic reset thermal cut out suitable for loads of around 3kw (maximum). For currents over 12A please ask about our ceramic base version. Supplied with a loose bracket that can be rotated for mounting. This thermal cut out is normally open (NO), meaning that it is normally in the off position. The thermal cut out will close (turn on) on reaching 60 degrees celsius and reset on temperature drop to 40 degrees celsius. This is a 1/2 inch thermal cut out, not to be confused with the higher rated 3/4 inch thermal cut outs more suitable for higher loads typically found in more powerful power showers. Supplied with 6.3mm vertical quick connect terminals and enclosed in a bakelite body. Carries TUV approval at 16A 250Vac & American UL approval at 16A 125Vac and complies with RoHS.

Suitable for a range of voltages; consult with the sales office for more information.
