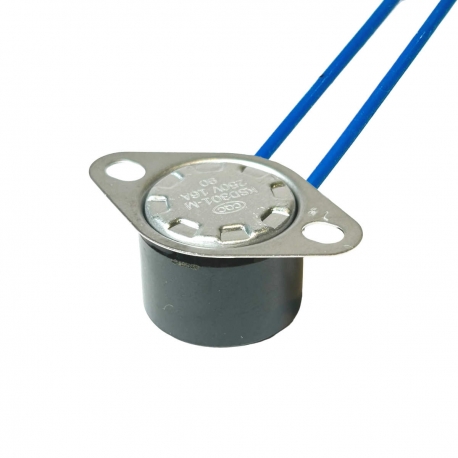

Thermostat Bimétallique 90ºC NF (Etanche)
  • Thermostat Bimétallique 90ºC NF (Etanche)
  • Thermostat Bimétallique 90ºC NF (Etanche)

Thermostat Bimétallique 90ºC NF (Etanche)

KSD301-90WL-EL
Note

Bimetallic Switch (Thermal Cut Out) / Surface Mount / 1/2” / Auto Reset / 16A 250V / N/C / Tolerance ±3 Degrees C on Open and ±7 Degrees on Close / 300mm Wire Leads / 90 Degrees C Normally Closed Thermal Switch / Circuit is Open on Temperature Rise at 90 Degrees C / Reset Temperature 70 Degrees / CQC Approved / RoHS / Bakelite Body / KSD301-9.0/16EL84S20-M275.

Remise sur la quantité

Quantité Prix unitaire Vous économisez
25 2,98 £ Jusqu'à 56,75 £
50 2,62 £ Jusqu'à 131,51 £
100 2,38 £ Jusqu'à 287,02 £
5,25 £

5,25 £ Tax incl.
Quantité
796 Produits

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

16 Amp 250Vac rated automatic reset thermal cut out suitable for loads of around 3kw (maximum) and is waterproof to IP65 for use in damp environments. Supplied with 300mm wire leads. This thermal cut out is normally closed (NC), meaning that it is normally in the on position. The thermal cut out will open (turn off) on reaching 90 degrees celsius and reset on temperature drop to 70 degrees celsius. This is a 1/2 inch bimetallic thermostat, not to be confused with the higher rated 3/4 inch thermal cut outs more suitable for higher loads typically found in more powerful power showers. Supplied with 6.3mm horizontal quick connect terminals and enclosed in a bakelite body. Complies with RoHS.

Détails du produit
KSD301-90WL-EL
796 Produits
Nouveau

Fiche technique

Termination
Wire Leads
Current Rating
16A
Switching Cycles
10,000
Switching Cycles (16A 250V)
10,000
Cap Material
Aluminium
Body Material
Bakelite
Contact Resistance
Less Than 50 m Ohm
Maximum Ambient Termperature
140 Degrees C
Fixing Hole Centres
23.8mm
Avis

Aucun avis n'a été publié pour le moment.

Donnez votre avis

Thermostat Bimétallique 90ºC NF (Etanche)

Thermostat Bimétallique 90ºC NF (Etanche)

Bimetallic Switch (Thermal Cut Out) / Surface Mount / 1/2” / Auto Reset / 16A 250V / N/C / Tolerance ±3 Degrees C on Open and ±7 Degrees on Close / 300mm Wire Leads / 90 Degrees C Normally Closed Thermal Switch / Circuit is Open on Temperature Rise at 90 Degrees C / Reset Temperature 70 Degrees / CQC Approved / RoHS / Bakelite Body / KSD301-9.0/16EL84S20-M275.

Donnez votre avis
