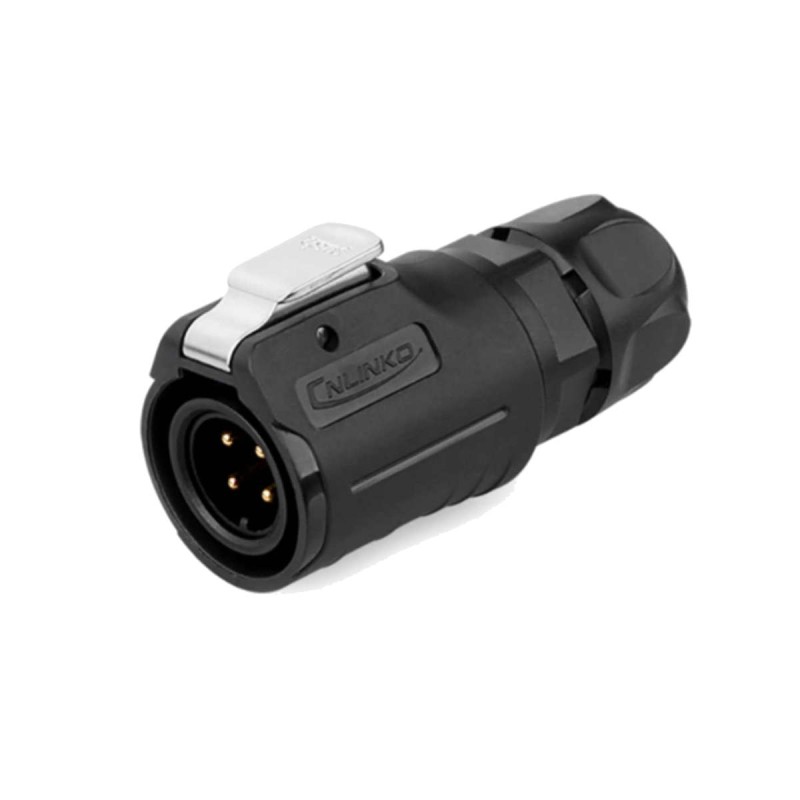

16mm IP67 Waterproof 4 Pole Plug Panel Mount Connector with Lock
  • 16mm IP67 Waterproof 4 Pole Plug Panel Mount Connector with Lock

16mm IP67 Waterproof 4 Pole Plug Panel Mount Connector with Lock

LP-16-C04-2
Note

Waterproof circular plug panel mount connector with an IP rating of IP67. This is a locking push in 4 pole connector with solder termination and rear cable gland for 5mm-7mm cables. Electrical rating of 10A 250V and carrying UL and CE approval. High quality construction with tough PBT body and gold plated brass contacts.

5,55 £

5,55 £ Tax incl.
Quantité
Rupture de stock

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

IP Rating : IP67

Temperature Range : -25ºC-85ºC

Materials : PBT and Chrome Plated Zinc

Seal Ring : Silicone

Electrical Contacts : Gold Plated Copper

Contact Resistance : 5.0 mΩ

Dimensions : 54mm x 30.1mm

Termination : Solder

Wire Range : 20 AWG (0.5mm2)

Cable Gland : 5-7mm Cables

Certification : UL, CE, RoHS



Typical applications include; solar energy, garden, outdoor, internal and external cabling, marine applications, stage and lighting, medical.

Détails du produit
LP-16-C04-2
Nouveau

Fiche technique

Colour
Black
IP Rating
IP67
Avis

Aucun avis n'a été publié pour le moment.

Donnez votre avis

16mm IP67 Waterproof 4 Pole Plug Panel Mount Connector with Lock

16mm IP67 Waterproof 4 Pole Plug Panel Mount Connector with Lock

Waterproof circular plug panel mount connector with an IP rating of IP67. This is a locking push in 4 pole connector with solder termination and rear cable gland for 5mm-7mm cables. Electrical rating of 10A 250V and carrying UL and CE approval. High quality construction with tough PBT body and gold plated brass contacts.
