12mm IP67 Waterproof 3 Pole Socket Panel Mount Connector with Lock and Cap
  • 12mm IP67 Waterproof 3 Pole Socket Panel Mount Connector with Lock and Cap

12mm IP67 Waterproof 3 Pole Socket Panel Mount Connector with Lock and Cap

LP-12-J03-2
Valoración

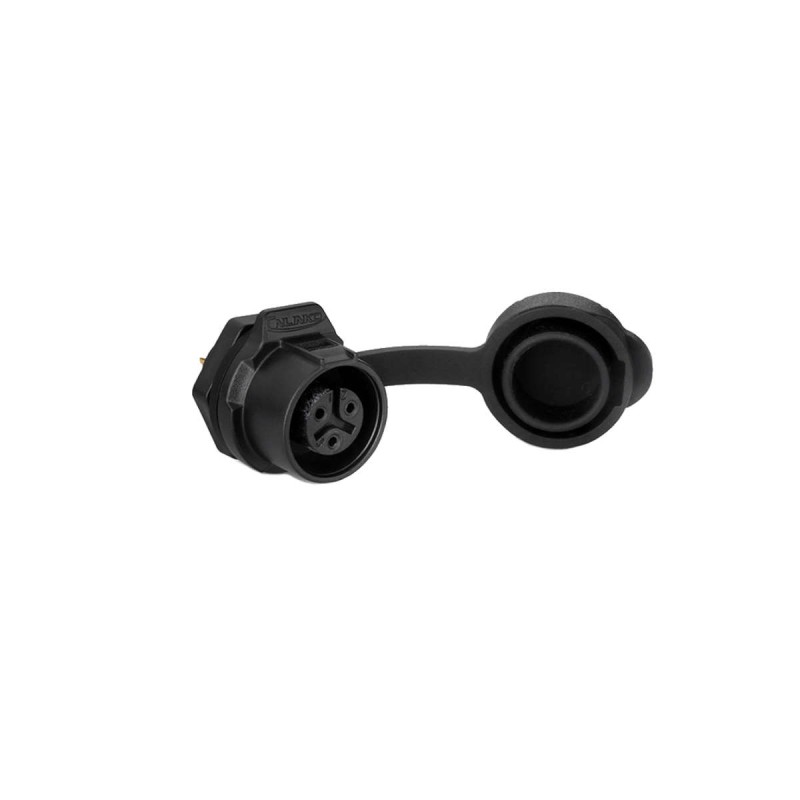

Waterproof circular socket panel mount connector with an IP rating of IP67. This is a locking push in 3 pole connector with solder termination and splash proof cover. Electrical rating of 5A 250V and carrying UL and CE approval. High quality construction with tough PBT body and gold plated brass contacts.

Descuentos por volumen

Cantidad Precio unitario Usted ahorra
25 1,60 £ Hasta 8,75 £
50 1,38 £ Hasta 28,50 £
100 1,31 £ Hasta 64,00 £
1,95 £

1,95 £ Tax incl.
Cantidad
40 Artículos

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Descripción

IP Rating : IP67

Temperature Range : -25ºC to +85ºC

Materials : PBT

Seal Ring : Silicone

Electrical Contacts : Gold Plated Copper

Contact Resistance : 5.0 mΩ

Dimensions : 12mm x 19.3mm

Panel Mount Hole : 12mm

Termination : Solder

Wire Range : 22-20 AWG (0.5mm2)

Certification : UL, CE, RoHS



Typical applications include; solar energy, garden, outdoor, internal and external cabling, marine applications, stage and lighting, medical.

Detalles del producto
LP-12-J03-2
40 Artículos
Nuevo

Ficha técnica

Colour
Black
IP Rating
IP67
Reseñas

No hay reseñas de clientes en este momento.

Escriba su propia reseña

12mm IP67 Waterproof 3 Pole Socket Panel Mount Connector with Lock and Cap

12mm IP67 Waterproof 3 Pole Socket Panel Mount Connector with Lock and Cap

Waterproof circular socket panel mount connector with an IP rating of IP67. This is a locking push in 3 pole connector with solder termination and splash proof cover. Electrical rating of 5A 250V and carrying UL and CE approval. High quality construction with tough PBT body and gold plated brass contacts.
