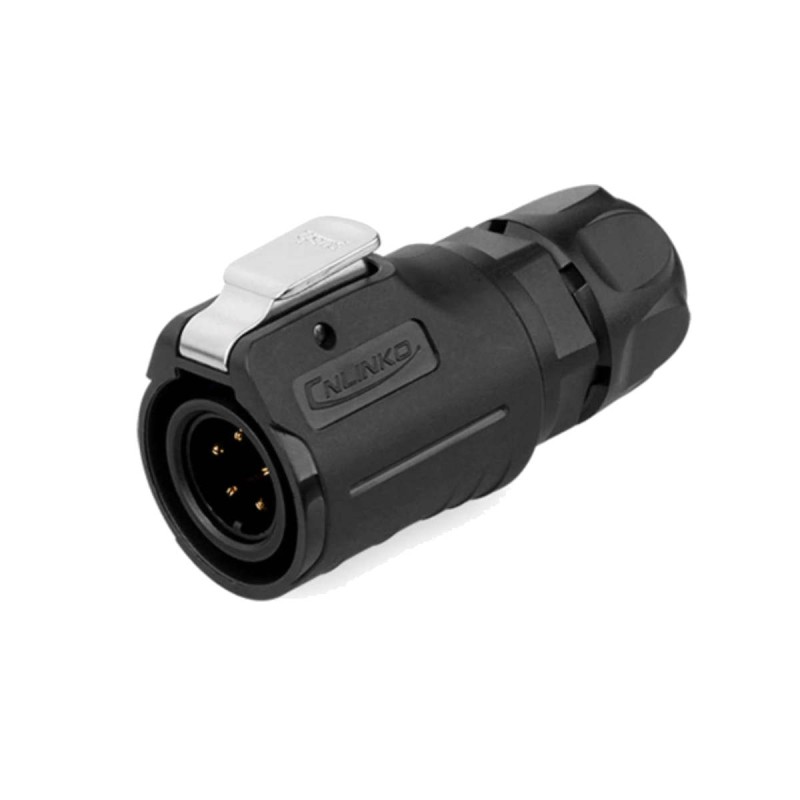

16mm IP67 Waterproof 5 Pole Plug Panel Mount Connector with Lock
  • 16mm IP67 Waterproof 5 Pole Plug Panel Mount Connector with Lock

16mm IP67 Waterproof 5 Pole Plug Panel Mount Connector with Lock

LP-16-C05-2
Valoración

Waterproof circular plug panel mount connector with an IP rating of IP67. This is a locking push in 5 pole connector with solder termination and rear cable gland for 5mm-7mm cables. Electrical rating of 5A 250V and carrying UL and CE approval. High quality construction with tough PBT body and gold plated brass contacts.

5,55 £

5,55 £ Tax incl.
Cantidad
Fuera de stock

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Descripción

IP Rating : IP67

Temperature Range : -25ºC-85ºC

Materials : PBT and Chrome Plated Zinc

Seal Ring : Silicone

Electrical Contacts : Gold Plated Copper

Contact Resistance : 5.0 mΩ

Dimensions : 54mm x 30.1mm

Termination : Solder

Wire Range : 20 AWG (0.5mm2)

Cable Gland : 5-7mm Cables

Certification : UL, CE, RoHS



Typical applications include; solar energy, garden, outdoor, internal and external cabling, marine applications, stage and lighting, medical.

Detalles del producto
LP-16-C05-2
Nuevo

Ficha técnica

Colour
Black
IP Rating
IP67
Reseñas

No hay reseñas de clientes en este momento.

Escriba su propia reseña

16mm IP67 Waterproof 5 Pole Plug Panel Mount Connector with Lock

16mm IP67 Waterproof 5 Pole Plug Panel Mount Connector with Lock

Waterproof circular plug panel mount connector with an IP rating of IP67. This is a locking push in 5 pole connector with solder termination and rear cable gland for 5mm-7mm cables. Electrical rating of 5A 250V and carrying UL and CE approval. High quality construction with tough PBT body and gold plated brass contacts.
