Vandal Proof Switch IP65 19mm Momentary On
  • Vandal Proof Switch IP65 19mm Momentary On
  • Vandal Proof Switch IP65 19mm Momentary On
  • Vandal Proof Switch IP65 19mm Momentary On
  • Vandal Proof Switch IP65 19mm Momentary On
  • Vandal Proof Switch IP65 19mm Momentary On

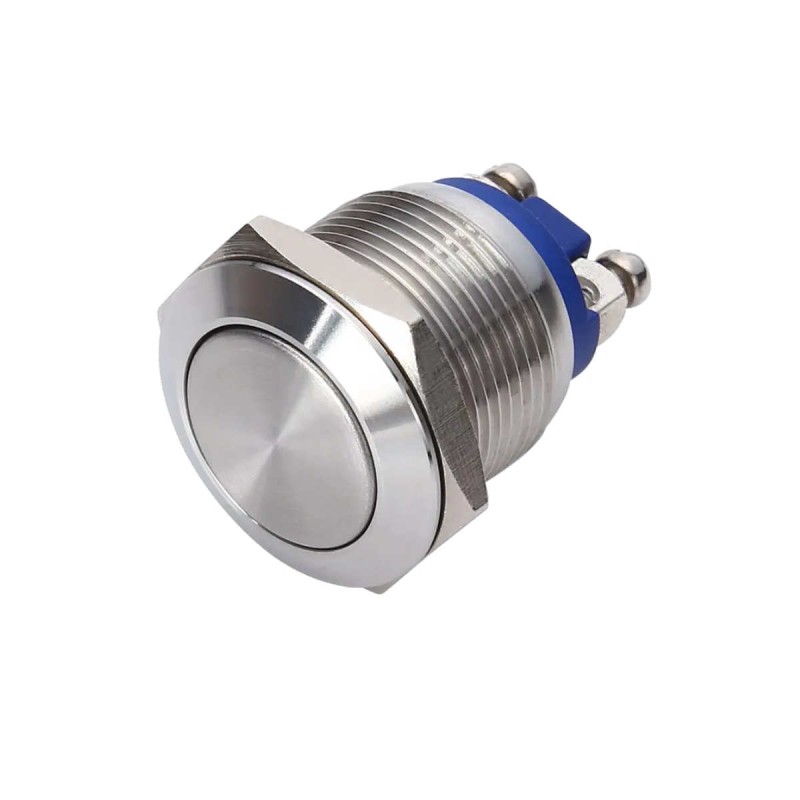

Vandal Proof Switch IP65 19mm Momentary On

GQ19F-10S
Onpow
Rating

22mm Vandal Proof Push Button / IP65 / NO / SPST / Momentary / (On) - Off / 19mm Panel Cut Out / Stainless Steel / Flat Head Button / Rating - 5A 36Vdc / 5A 240V / Screw Wire Terminals / RoHS / GQ19F-10S.



Allow 3-5 weeks for delivery for non UK stock parts.

Volume discounts

Quantity Unit price (Ex VAT) You Save
25 £3.94 Up to £11.81
50 £3.46 Up to £47.25
100 £3.15 Up to £125.99
500 £2.84 Up to £787.41
£4.41

£4.41 Inc VAT
In stock products 2-3 day delivery, 50 or more deliverable in 3-5 weeks.
Quantity
773 Items

  Delivery

We aim to despatch orders received prior to 2pm on the same day as ordered.

  Returns

30 day returns.

Description

Bezel Dimension : 22mm

Panel Cut Out : 19.0mm

IP Rating : IP65, shipped with panel sealing washer

Circuit : NO (Normally Open), Single Pole Single Throw (SPST), Momentary (On) - Off

Material : Stainless Steel

Rating : 5A 36Vdc / 5A 240V

Connection : Screw Wire Terminals

Mechanical Life : 1,000,000 Operations

Operating Pressure : About 4N

Actuator Travel : About 1.5mm

Operating Temperature : -20ºC to +55ºC

Product Details
Onpow
GQ19F-10S
773 Items
New

Data sheet

Panel Cut Out
19.0mm
Circuit
(On)-Off
Fixing
Screw
Termination
Screw Terminals
IP Rating
IP65
Attachments
Download
GQ19F-10S Drawing

GQ19F-10S Drawing

Download (0)
Reviews

No customer reviews for the moment.

Write your review

Vandal Proof Switch IP65 19mm Momentary On

Vandal Proof Switch IP65 19mm Momentary On

22mm Vandal Proof Push Button / IP65 / NO / SPST / Momentary / (On) - Off / 19mm Panel Cut Out / Stainless Steel / Flat Head Button / Rating - 5A 36Vdc / 5A 240V / Screw Wire Terminals / RoHS / GQ19F-10S.



Allow 3-5 weeks for delivery for non UK stock parts.
