12V White Illuminated 19mm Vandal Resistant Push Button Switch IP65 | Latching with Wire Leads
  • 12V White Illuminated 19mm Vandal Resistant Push Button Switch IP65 | Latching with Wire Leads

12V White Illuminated 19mm Vandal Resistant Push Button Switch IP65 | Latching with Wire Leads

LAS1GQ-11ZE/W/12V/S-1
Onpow
Rating

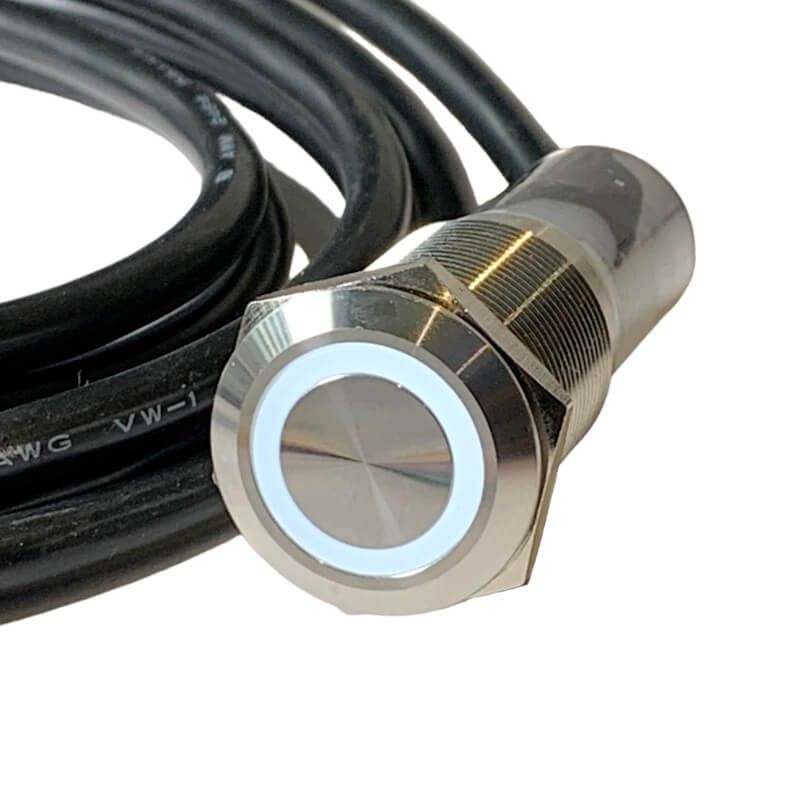

High quality 12V white illuminated vandal resistant push button switch with a stainless steel body and illuminated white ring. Designed for a standard 19mm panel cut-out, this 22mm metal push button switch features SPST latching On-Off operation and IP65 protection when fitted with the supplied rubber O-ring. Rated at 5A 12V DC resistive and 2A 12V DC inductive, it is suitable for automotive, marine, industrial and other low-voltage applications. Supplied with 220mm wire leads for easy installation. RoHS compliant.




Restock lead time : 4-5 weeks.

£16.20

£16.20 Inc VAT
Quantity
19 Items

  Delivery

We aim to despatch orders received prior to 2pm on the same day as ordered.

  Returns

30 day returns.

Description

Bezel Dimension : 22mm

Panel Cut Out : 19.0mm

IP Rating : IP65, shipped with panel sealing washer

Circuit : NO (Normally Open), Single Pole Single Throw (SPST), Latching On - Off

Material : Stainless Steel

Rating : 5A 12Vdc Resistive / 2A 12Vdc Inductive

Connection : 220mm Wire Leads

Mechanical Life : 1,000,000 Operations

Operating Pressure : About 4N

Actuator Travel : About 1.5mm

Operating Temperature : -20ºC to +55ºC

Product Details
Onpow
LAS1GQ-11ZE/W/12V/S-1
19 Items
New

Data sheet

Voltage
12V
Colour
White
Panel Cut Out
19.0mm
Circuit
On-Off
Fixing
Screw
Termination
Wire Leads
IP Rating
IP65
Attachments
Download
LAS1GQ-11ZE/W/12V/S-1 Drawing

12V White Illuminated Vandal Proof Switch Drawing

Download (336.1KB)
Reviews

No customer reviews for the moment.

Write your review
