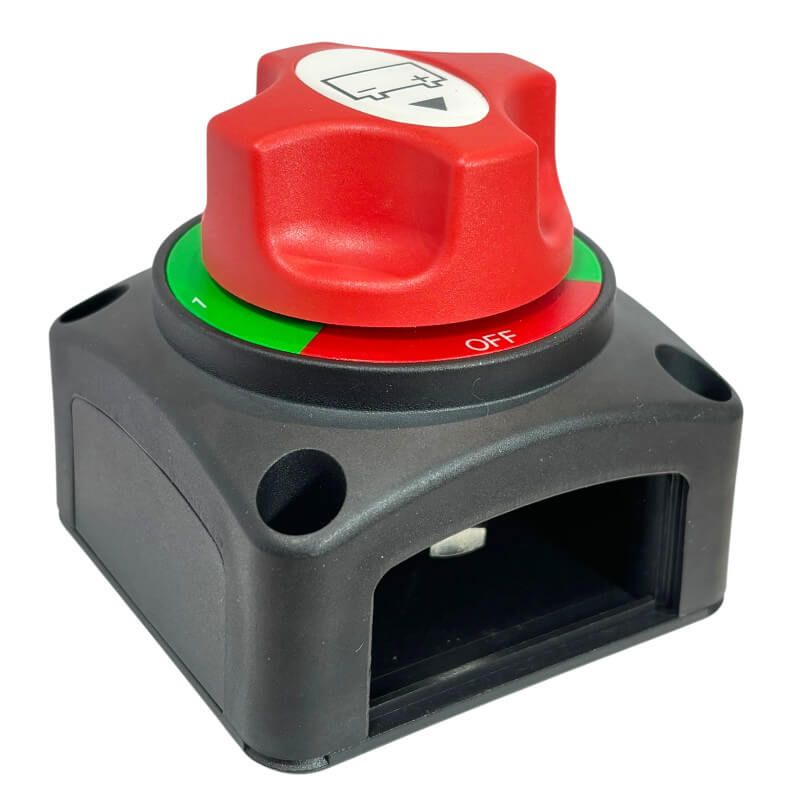

Changeover Battery Isolator Switch 100 Amp A23-3
  • Changeover Battery Isolator Switch 100 Amp A23-3
  • Changeover Battery Isolator Switch 100 Amp | A23-3

Changeover Battery Isolator Switch 100 Amp | A23-3

A23-3
Rating

Heavy-duty 100A marine changeover battery isolator switch with screw and clamp termination, designed for reliable battery disconnection and circuit isolation in marine, automotive, camper van, motorhome and other 12V and 24V applications. Rated at 100A 12–50V DC continuous current, 300A intermittent current and 1,000A cranking current. Features four switching positions: ON 1, ON 2, ON 1+2 and OFF, allowing two batteries to be selected individually, combined or disconnected. Removable side and bottom break-out panels provide easy installation and mounting.

Volume discounts

Quantity Unit price (Ex VAT) You Save
5 £11.39 Up to £4.30
10 £10.66 Up to £15.90
50 £9.43 Up to £141.00
£12.25

£12.25 Inc VAT
Quantity
Out-of-Stock

  Delivery

We aim to despatch orders received prior to 2pm on the same day as ordered.

  Returns

30 day returns.

Description

IP Rating : IP68

Footprint Size : 69mm x 69mm

Mounting Hole Centres : 55mm x 55mm

Continuous Current : 100A, 12-50Vdc

Intermittent Current : 300A, 12-50Vdc

Cranking Current : 1,000A, 12-50Vdc

Termination : M10 Nut and Stud

Operating Temperature : -20°C to +80°C

Break Out Panels : 3

Product Details
SCI (Shin Chin)
A23-3
New

Data sheet

Voltage
50V
Current Rating
100A 12-50V DC Continuous
IP Rating
IP68
Attachments
Download
A23-3 Drawing

A23-3 100A Changeover Battery Isolator Switch Drawing

Download (41.44KB)
