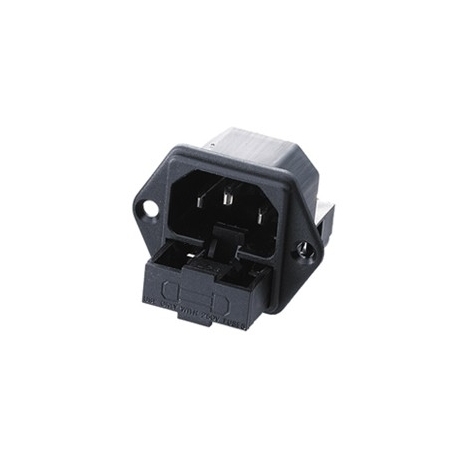

C14 IEC 2 x Fused Connector – Inalways IEC Socket 10A 250Vac 6.3mm Terminals
  • C14 IEC 2 x Fused Connector – Inalways IEC Socket 10A 250Vac 6.3mm Terminals

C14 IEC 2 x Fused Connector – Inalways IEC Socket 10A 250Vac 6.3mm Terminals

0717-2CW
Inalways
Rating

Screw in twin fused IEC C14 inlet socket from Inalways designed for screw in fitting with current rating of 10A 250Vac and 15A 125Vac. 6.3mm QC tab terminals. Carries UL (American), CSA (Canadian) and ENEC (European) approvals and complies with RoHS.

Volume discounts

Quantity Unit price (Ex VAT) You Save
25 £1.14 Up to £5.50
50 £1.08 Up to £14.00
100 £1.00 Up to £36.00
500 £0.95 Up to £205.02
£1.36

£1.36 Inc VAT
Quantity
4384 Items

  Delivery

We aim to despatch orders received prior to 2pm on the same day as ordered.

  Returns

30 day returns.

Description

Electrical Rating : 10A 250Vac & 15A 125Vac

Standard : EN60320

Flammability : UL 94V-0

Connection : 6.3mm QC Terminal

Operating Temperature : -25ºC to +85ºC

Mounting : Screw In

Panel Cut Out : 27mm x 31.4mm to 31.6mm

Material : Nylon 6/6

Fuse Type : 5 x 20mm (Requires 2 Fuses)

Approvals : UL, CSA, ENEC, RoHS

Product Details
Inalways
0717-2CW
4384 Items
New

Data sheet

Colour
Black
Fixing
Screw
Termination
6.3mm QC Terminals
Flame Retardancy
UL94 V0 (Higher)
Attachments
Download
0717-2-CW Drawing

0717-2-CW Drawing

Download (268.95KB)
Reviews

No customer reviews for the moment.

Write your review

C14 IEC 2 x Fused Connector – Inalways IEC Socket 10A 250Vac 6.3mm Terminals

C14 IEC 2 x Fused Connector – Inalways IEC Socket 10A 250Vac 6.3mm Terminals

Screw in twin fused IEC C14 inlet socket from Inalways designed for screw in fitting with current rating of 10A 250Vac and 15A 125Vac. 6.3mm QC tab terminals. Carries UL (American), CSA (Canadian) and ENEC (European) approvals and complies with RoHS.
