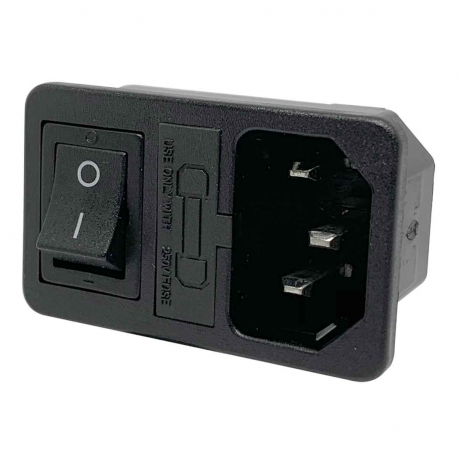

Fused & Switched IEC C14 - 2mm Panel Thickness

0717-1S-20N
Inalways
Rating

Snap in fused and switched IEC C14 inlet socket from Inalways designed for snap in fitting for panel thickness of 2.0mm with current rating of 10A 250Vac and 15A 125Vac. Double pole single thrown (DPST) rocker switch hard wired to fuse and IEC socket for rapid assembly. 4.8mm QC tab terminals. Carries UL (American), CSA (Canadian) and ENEC (European) approvals and complies with RoHS.

Volume discounts

Quantity Unit price (Ex VAT) You Save
25 £2.11 Up to £10.25
50 £1.93 Up to £29.50
100 £1.74 Up to £77.99
500 £1.46 Up to £529.96
£2.52

£2.52 Inc VAT
Quantity
2626 Items

  Delivery

We aim to despatch orders received prior to 2pm on the same day as ordered.

  Returns

30 day returns.

Description

Electrical Rating : 10A 250Vac & 15A 125Vac

Standard : EN60320

Flammability : UL 94V-0

Connection : 4.8mm QC Terminal

Operating Temperature : -25ºC to +85ºC

Mounting : Snap In

Panel Cut Out : 47mm x 28mm

Panel Thickness : 2.0mm

Material : Nylon 6/6

Fuse Type : 5 x 20mm

Approvals : UL, CSA, ENEC, RoHS

Product Details
Inalways
0717-1S-20N
2626 Items
New

Data sheet

Voltage
240V
Colour
Black
Panel Cut Out
47mm x 28mm
Print
0 -
Circuit
On-Off
Fixing
Snap In
Termination
4.8mm QC Terminals
Flame Retardancy
UL94 V0 (Higher)
Panel Thickness
2.0mm
Current Rating
10A
