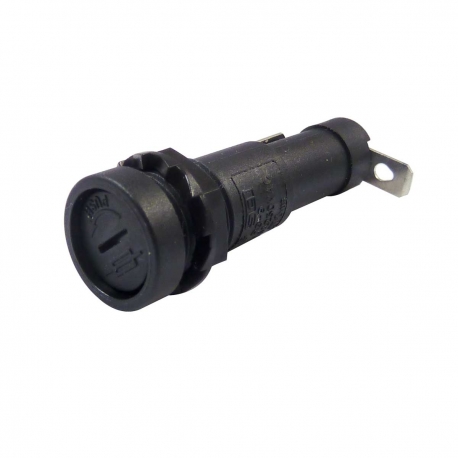

Panel Mount Fuse Holder for 30 & 32mm Fuses
  • Panel Mount Fuse Holder for 30 & 32mm Fuses

Panel Mount Fuse Holder 30mm & 32mm Fuse 15A Tool Release

R3-9A
Rating

High quality panel mount fuse holder for 6.35mm x 32mm and 6.40mm x 30mm fuses to fit the standard 13.2mm x 12mm panel cut out. Tool release screw cap with screw fit mounting into the panel. Made from UL V2 material for fire retardancy. Rated at 10A 250Vac and carrying UL (American) approval and compliant with RoHS.

Volume discounts

Quantity Unit price (Ex VAT) You Save
25 £0.56 Up to £4.75
50 £0.48 Up to £13.50
100 £0.45 Up to £30.00
500 £0.40 Up to £175.01
£0.75

£0.75 Inc VAT
Quantity
872 Items

  Delivery

We aim to despatch orders received prior to 2pm on the same day as ordered.

  Returns

30 day returns.

Description

Electrical Rating : 15A 250Vac

Flammability : UL 94V-2

Connection : 4.8mm QC Terminals

Operating Temperature : -25ºC to +85ºC

Mounting : Screw In

Panel Thickness : 4.5mm max.

Material : Nylon 6/6

Approvals : UL, RoHS

Product Details
SCI (Shin Chin)
R3-9A
872 Items
New

Data sheet

Voltage
250V
Colour
Black
Panel Cut Out
13.2mm x 12mm
Fixing
Screw
Termination
4.8mm QC Terminals
Flame Retardancy
UL94 V2 (Lower)
Current Rating
15A
Product Type
Panel Mount Fuse Holders
Reviews

No customer reviews for the moment.

Write your review

Panel Mount Fuse Holder 30mm & 32mm Fuse 15A Tool Release

Panel Mount Fuse Holder 30mm & 32mm Fuse 15A Tool Release

High quality panel mount fuse holder for 6.35mm x 32mm and 6.40mm x 30mm fuses to fit the standard 13.2mm x 12mm panel cut out. Tool release screw cap with screw fit mounting into the panel. Made from UL V2 material for fire retardancy. Rated at 10A 250Vac and carrying UL (American) approval and compliant with RoHS.
