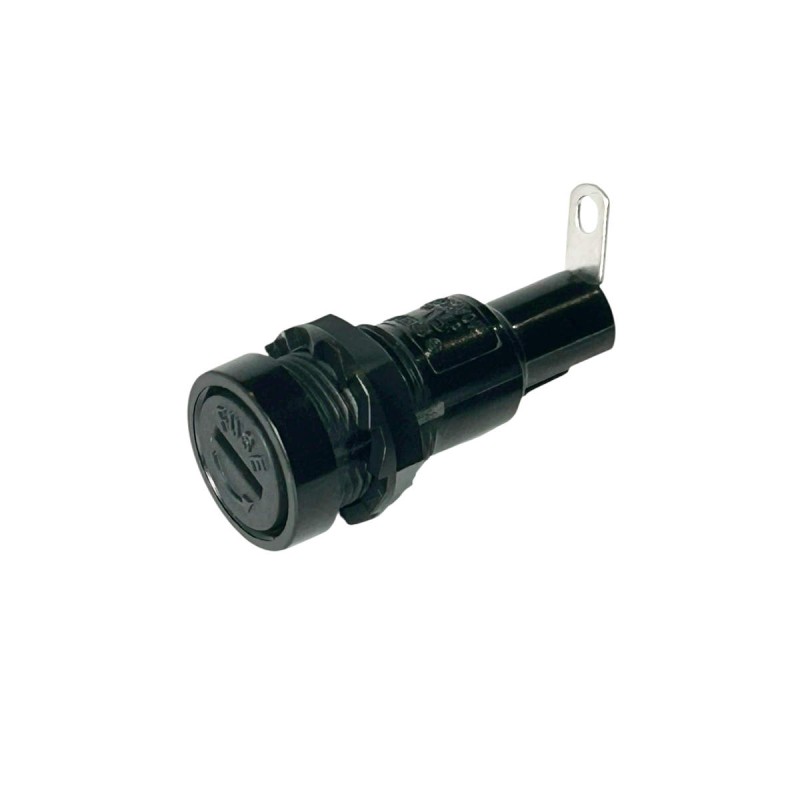

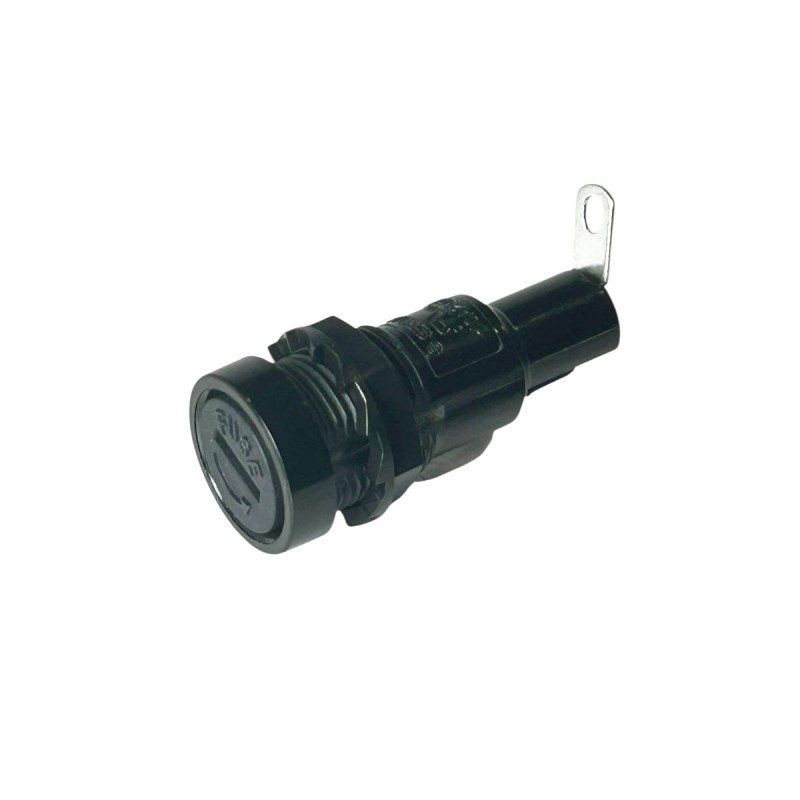

Panel Mount Fuse Holder 5 x 20mm Fuse 10A Tool Release

R3-11
Rating

High quality panel mount fuse holder for 5mm x 20mm fuses to fit the standard 12.7mm x 12mm panel cut out. Tool release screw cap with screw fit mounting into the panel. Made from UL V1/V0 material for fire retardancy. Rated at 10A 250Vac and carrying UL (American) approval and compliant with RoHS.

Volume discounts

Quantity Unit price (Ex VAT) You Save
25 £0.58 Up to £2.50
50 £0.51 Up to £8.50
100 £0.48 Up to £20.00
500 £0.41 Up to £135.01
£0.68

£0.68 Inc VAT
Quantity
Out-of-Stock

  Delivery

We aim to despatch orders received prior to 2pm on the same day as ordered.

  Returns

30 day returns.

Description

Electrical Rating : 10A 250Vac

Flammability : UL 94V-1/0

Connection : 4mm Solder Tag Terminal

Operating Temperature : -25ºC to +85ºC

Mounting : Screw In

Panel Thickness : 4.5mm max.

Material : Nylon 6/6

Approvals : UL, CSA, RoHS

Product Details
SCI (Shin Chin)
R3-11
New

Data sheet

Voltage
250V
Colour
Black
Panel Cut Out
12mm x 12.7mm
Fixing
Screw
Termination
Solder Terminals
Flame Retardancy
UL94 V0 (Higher)
Panel Thickness
0.0-4.5mm
Current Rating
10A
Product Type
Panel Mount Fuse Holders
Attachments
Download
R3-11 Drawing

R3-11 Panel Mount Fuse Holder Drawing

Download (52.92KB)
