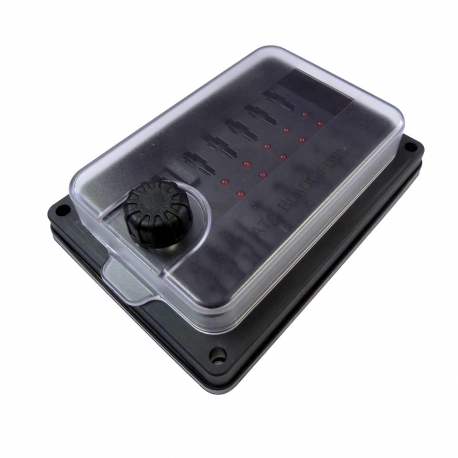

A superb quality compact ATC fuse block for 2 independant banks of 5 fuses with red failure indicator light for each fuse and a further 6 slots for spare fuse blades. Comprising a clear PC cover with screw down nut, sealing washer and PBT base. Weatherproof to IP 56. Marine, boat or automotive use.
Delivery
We aim to despatch orders received prior to 2pm on the same day as ordered.
Returns
30 day returns.
Number of Fuses : 10 (2 Independant Blocks of 5)
Termination (Fuses) : 6.3mm Tab Terminals
Cover : Screw on Clear PC Cover
Maximum Current Rating: 25A per Circuit
Maximum Voltage Rating: 32V DC
Mounting Hole Diameter : 4.5mm
Mounting Hole Centres : 75.5mm x 109.7mm
Overall Size : 125mm (L) x 90mm (W) x 37.5mm (H) Including Fastening Screw Knob
