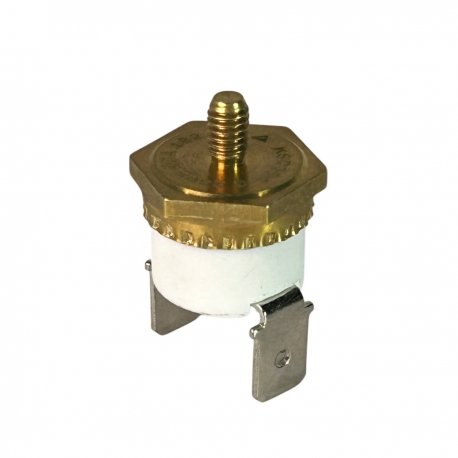

Thermostat Normal Cerrado 90ºC N/C

KSD301A-90LA-R

Nuevo

Termostato Bimetálico / 1/2” / Reinicio Automático / 16A 250V / N/C / Tolerancia ±4 Grado C en Abierto y ±7 Grado en Cerrado / 6.3mm Terminales Verticales / 90 Grado C Normal Cerrado Termostatos Bimetálicos / Circuito Abierto en Subida de Temperatura por Encima de 90 Grado C / Reajustar Temperatura 70 Grado / RoHS / Cuerpo De Cerámico / KSD301-9.0/16LA16.

Más detalles

Este producto ya no está disponible

£5.00 Ex VAT

£6.00   Tax incl.

Volume discounts

QuantityPriceYou Save
50 £3.53 Up to £73.50
25 £3.98 Up to £25.50

Data sheet

Termination6.3mm QC Terminals
Current Rating16A
Switching Cycles100,000
Cap MaterialAluminium
Body MaterialCeramic
Contact ResistanceLess Than 50 m Ohm
SeriesKSD301-G
Maximum Ambient Termperature185 Degrees C

More info

16 Amp 250Vac rated automatic reset thermal cut out suitable for loads of around 3kw (maximum). Supplied with an M4 threaded shaft for fitting. This thermal cut out is normally closed (NC), meaning that it is normally in the on position. The thermal cut out will open (turn off) on reaching 90 degrees celsius and reset on temperature drop to 70 degrees celsius. This is a 1/2 inch thermal cut out, not to be confused with the higher rated 3/4 inch thermal cut outs more suitable for higher loads typically found in more powerful power showers. Supplied with 6.3mm vertical quick connect terminals and enclosed in a ceramic body. Carries TUV approval at 16A 250Vac & American UL approval at 16A 125Vac and complies with RoHS.



Suitable for a range of voltages; consult with the sales office for more information

Prices

1-2425-4950 +
£5.00£3.98£3.53
