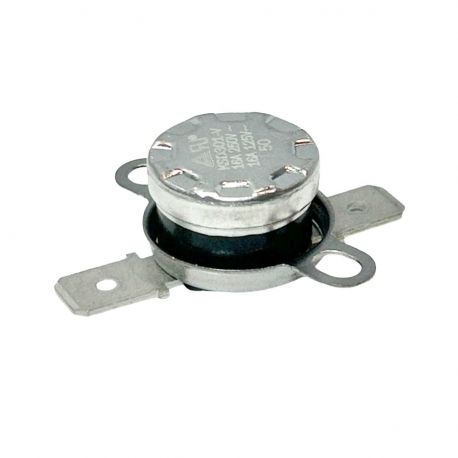

Termostato Bimetálico 90ºC N/A

KSD301B-90AF-BT

Nuevo

Termostato Bimetálico / 1/2” / Reinicio Automático / 16A 250V / N/A / Tolerancia ±4 Grado C en Abierto y ±7 Grado en Cerrado / Soporte Suelto Tipo BT / 6.3mm Terminales Verticales / 90 Grado C Normal Abierto Termostato Bimetálico / Circuito Cerrado en Subida de Temperatura por Encima de 90 Grado C / Reajustar Temperatura 70 Grado / UL y TUV / RoHS / Cuerpo De Baquelita / KSD301-9.0/16BT15K20.

Más detalles

4 artículos

£1.95 Ex VAT

£2.34   Tax incl.

Añadir a mi wishlist

Volume discounts

QuantityPriceYou Save
600 £0.67 Up to £767.99
200 £0.76 Up to £238.02
50 £0.88 Up to £53.50
25 £1.03 Up to £23.00

Data sheet

Termination6.3mm QC Terminals
Switching Cycles100,000
Switching Cycles (16A 250V)60,000
Cap MaterialAluminium
Body MaterialBakelite
Contact ResistanceLess Than 50 m Ohm
Maximum Ambient Termperature140 Degrees C
Fixing Hole Centres24mm

More info

16 Amp 250Vac rated automatic reset thermal cut out suitable for loads of around 3kw (maximum). For currents over 12A please ask about our ceramic base version. Supplied with a loose bracket that can be rotated for mounting. This thermal cut out is normally open (NO), meaning that it is normally in the off position. The thermal cut out will close (turn on) on reaching 90 degrees celsius and reset on temperature drop to 70 degrees celsius. This is a 1/2 inch thermal cut out, not to be confused with the higher rated 3/4 inch thermal cut outs more suitable for higher loads typically found in more powerful power showers. Supplied with 6.3mm horizontal quick connect terminals and enclosed in a bakelite body. Carries TUV approval at 16A 250Vac & American UL approval at 16A 125Vac and complies with RoHS.



Suitable for a range of voltages; consult with the sales office for more information.

Prices

1-2425-4950-199200-599600 +
£1.95£1.03£0.88£0.76£0.67
