IP67 Waterproof 3 Pole Circular Locking Plug Panel Mount Connector
  • IP67 Waterproof 3 Pole Circular Locking Plug Panel Mount Connector

IP65 Waterproof 3 Pole Circular Locking Plug Panel Mount Connector

YF-24-C03PE
Valoración

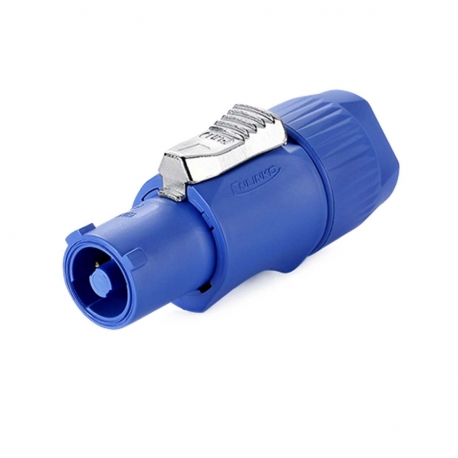

Waterproof 3 pin circular plug panel mount connector with an IP rating of IP65. This is a push in twist locking 3 pole connector with screw terminals for easy assembly and rear cable gland for 8.5mm-11mm cables. Electrical rating of 20A 500V and carrying UL and CE approval. High quality construction with tough PBT body and gold plated brass contacts.

Descuentos por volumen

Cantidad Precio unitario Usted ahorra
5 5,08 £ Hasta 4,50 £
25 4,49 £ Hasta 37,26 £
5,98 £

5,98 £ Tax incl.
Cantidad
67 Artículos

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Descripción

IP Rating : IP65

Temperature Range : -40ºC-80ºC

Materials : PBT and Chrome Plated Zinc

Seal Ring : Silicone

Electrical Contacts : Gold Plated Copper

Contact Resistance : 3.0 mΩ

Dimensions : 73mm x 26.6mm

Wire Range : 14-12 AWG (2.5mm2-4mm2)

Cable Gland : 8.5-11mm Cables

Certification : UL, CE, RoHS



Typical applications include; solar energy, garden, outdoor, internal and external cabling, marine applications, stage and lighting, medical.

Detalles del producto
YF-24-C03PE
67 Artículos
Nuevo

Ficha técnica

Colour
Blue
IP Rating
IP65
Reseñas

No hay reseñas de clientes en este momento.

Escriba su propia reseña

IP65 Waterproof 3 Pole Circular Locking Plug Panel Mount Connector

IP65 Waterproof 3 Pole Circular Locking Plug Panel Mount Connector

Waterproof 3 pin circular plug panel mount connector with an IP rating of IP65. This is a push in twist locking 3 pole connector with screw terminals for easy assembly and rear cable gland for 8.5mm-11mm cables. Electrical rating of 20A 500V and carrying UL and CE approval. High quality construction with tough PBT body and gold plated brass contacts.
