IP67 Waterproof 2 Pole Female Plug Panel Mount Connector with Lock
  • IP67 Waterproof 2 Pole Female Plug Panel Mount Connector with Lock

IP67 Waterproof 2 Pole Female Plug Panel Mount Connector with Lock

LP-20-J02F
Valoración

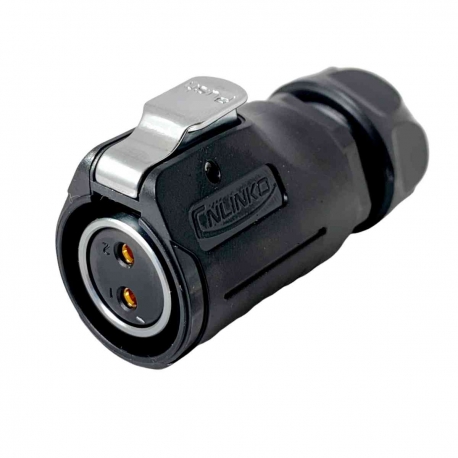

Waterproof circular plug panel mount connector with an IP rating of IP67. This is a locking push in 2 pole female connector with solder termination and rear cable gland for 8.5mm-11mm cables. Electrical rating of 20A 500V and carrying UL and CE approval. High quality construction with tough PBT body and gold plated brass contacts.

6,00 £

6,00 £ Tax incl.
Cantidad
46 Artículos

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Descripción

IP Rating : IP67

Temperature Range : -40ºC +80ºC

Materials : PBT and Chrome Plated Zinc

Seal Ring : Silicone

Electrical Contacts : Gold Plated Copper

Contact Resistance : 5.0 mΩ

Dimensions : 64mm x 36mm

Wire Range : 14-12 AWG (2.5mm2-4mm2)

Cable Gland : 8.5-11mm Cables

Certification : UL, CE, RoHS



Typical applications include; caravan power supply, solar energy, garden, outdoor, internal and external cabling, marine applications, stage and lighting, medical.

Detalles del producto
LP-20-J02F
46 Artículos
Nuevo

Ficha técnica

Colour
Black
IP Rating
IP67
