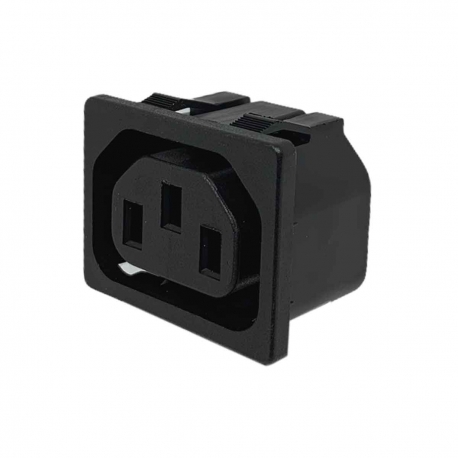

Conector IEC C13 Chasis Hembra / EN60320 C13 / 10A 250Vac / A Presión / 0.8-2.0 mm Panel Thickness / 6.3mm Terminales / UL, VDE / RoHS / 0718-1-PW.
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
High quality C13 IEC power inlet from leading manufacturer Inalways to fit the standard 32.3mm panel cut out. The width of the cut out is dependant on the panel thickness and ranges between 25.2mm to 25.4mm. This version features 6.3mm quick connect termination. European rating is 10A 250V AC and 15A 125Vac US rating to suit most standard applications. Manufactured from UL 94V-0 thermoplastic for safety. Carries ENEC (European) and UL (American) approvals and complies with RoHS.
For our full stocked range of C13 power inlets, including multi way (ganged) options, please see our C13 page.
Ficha técnica
