16mm IP67 Waterproof 3 Pole Inline Socket Connector with Lock
  • 16mm IP67 Waterproof 3 Pole Inline Socket Connector with Lock
  • 16mm IP67 Waterproof 3 Pole Inline Socket Connector with Lock

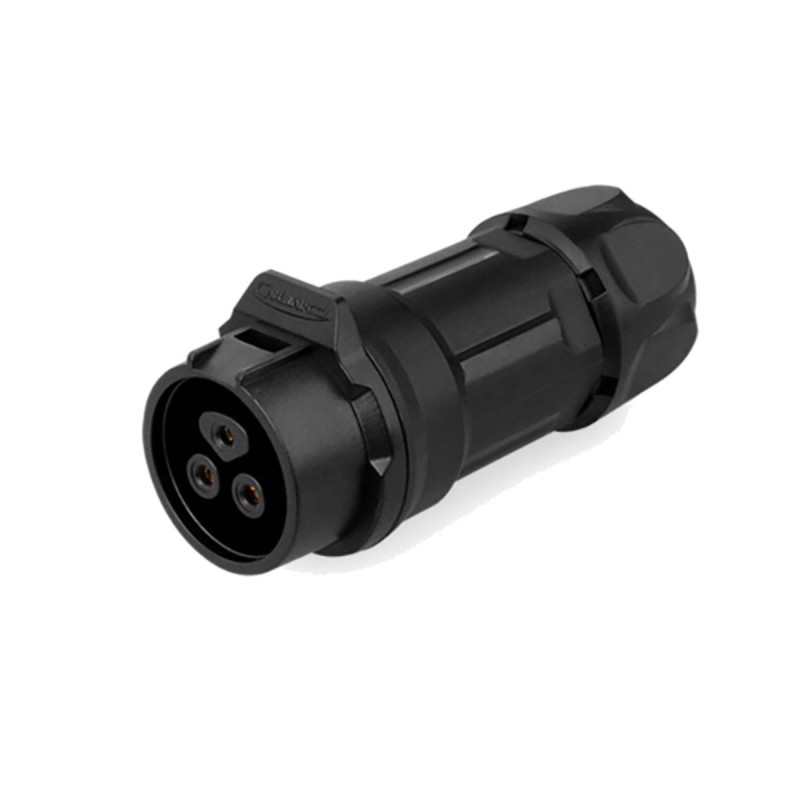

16mm IP67 Waterproof 3 Pole Inline Socket Connector with Lock

LP-16-J03PP
Rating

Waterproof circular socket inline connector with an IP rating of IP67. This is a locking push in inline 3 pole connector with solder termination which mates with our LP-16-C03-2. Electrical rating of 10A 400V and carrying UL and CE approval. High quality construction with tough PBT body and gold plated brass contacts.

Volume discounts

Quantity Unit price (Ex VAT) You Save
25 £2.79 Up to £15.25
50 £2.41 Up to £49.50
100 £2.28 Up to £112.00
£3.40

£3.40 Inc VAT
Quantity
39 Items

  Delivery

We aim to despatch orders received prior to 2pm on the same day as ordered.

  Returns

30 day returns.

Description

IP Rating : IP67

Temperature Range : -25ºC-85ºC

Materials : PBT

Seal Ring : Silicone

Electrical Contacts : Gold Plated Copper

Contact Resistance : 5.0 mΩ

Dimensions : 54mm x 26mm

Termination : Solder

Wire Range : 16 AWG (1.5mm2)

Certification : UL, CE, RoHS



Typical applications include; solar energy, garden, outdoor, internal and external cabling, marine applications, stage and lighting, medical.

Product Details
LP-16-J03PP
39 Items
New

Data sheet

Colour
Black
IP Rating
IP67
Reviews

No customer reviews for the moment.

Write your review

16mm IP67 Waterproof 3 Pole Inline Socket Connector with Lock

16mm IP67 Waterproof 3 Pole Inline Socket Connector with Lock

Waterproof circular socket inline connector with an IP rating of IP67. This is a locking push in inline 3 pole connector with solder termination which mates with our LP-16-C03-2. Electrical rating of 10A 400V and carrying UL and CE approval. High quality construction with tough PBT body and gold plated brass contacts.
