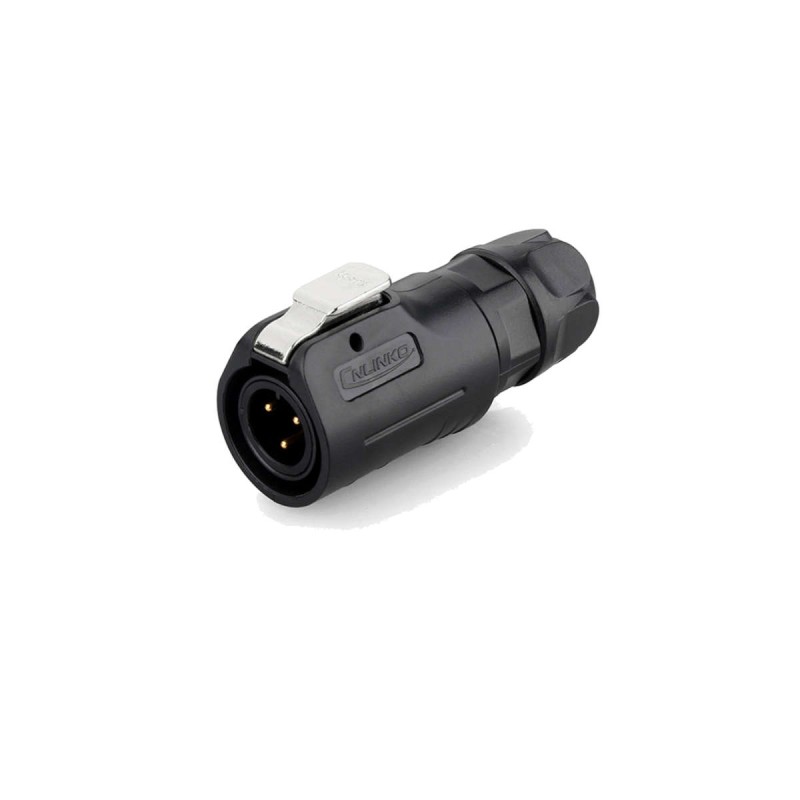

12mm IP67 Waterproof 3 Pole Plug Panel Mount Connector with Lock
  • 12mm IP67 Waterproof 3 Pole Plug Panel Mount Connector with Lock

12mm IP67 Waterproof 3 Pole Plug Panel Mount Connector with Lock

LP-12-C03-2
Rating

Waterproof circular plug panel mount connector with an IP rating of IP67. This is a locking push in 3 pole connector with solder termination and rear cable gland for 4.5mm-5.5mm cables. Electrical rating of 5A 250V and carrying UL and CE approval. High quality construction with tough PBT body and gold plated brass contacts.

Volume discounts

Quantity Unit price (Ex VAT) You Save
25 £2.30 Up to £12.50
50 £1.99 Up to £40.50
100 £1.88 Up to £92.01
£2.80

£2.80 Inc VAT
Quantity
40 Items

  Delivery

We aim to despatch orders received prior to 2pm on the same day as ordered.

  Returns

30 day returns.

Description

IP Rating : IP67

Temperature Range : -25ºC-85ºC

Materials : PBT and Chrome Plated Zinc

Seal Ring : Silicone

Electrical Contacts : Gold Plated Copper

Contact Resistance : 5.0 mΩ

Dimensions : 49.5mm x 22.4mm

Termination : Solder

Wire Range : 22-20 AWG (0.5mm2)

Cable Gland : 4.5-5.5mm Cables

Certification : UL, CE, RoHS



Typical applications include; solar energy, garden, outdoor, internal and external cabling, marine applications, stage and lighting, medical.

Product Details
LP-12-C03-2
40 Items
New

Data sheet

Colour
Black
IP Rating
IP67
Reviews

No customer reviews for the moment.

Write your review

12mm IP67 Waterproof 3 Pole Plug Panel Mount Connector with Lock

12mm IP67 Waterproof 3 Pole Plug Panel Mount Connector with Lock

Waterproof circular plug panel mount connector with an IP rating of IP67. This is a locking push in 3 pole connector with solder termination and rear cable gland for 4.5mm-5.5mm cables. Electrical rating of 5A 250V and carrying UL and CE approval. High quality construction with tough PBT body and gold plated brass contacts.
