Push Button Switch Momentary On
  • Push Button Switch Momentary On
  • Push Button Switch Momentary On
  • Push Button Switch Momentary On

Push Button Switch Momentary On

R13-523A-BR
Rating

Push Button Switch / 1.5A 250Vac / 16mm Panel Cut-Out / Snap in /  SPST / Momentary On / Off-(On) / Black Body / Red Button / Solder Tag Terminals / UL, cUL / RoHS / R13-523A-BR.

Volume discounts

Quantity Unit price (Ex VAT) You Save
25 £0.98 Up to £6.75
50 £0.89 Up to £18.06
100 £0.81 Up to £44.00
500 £0.68 Up to £285.00
£1.25

£1.25 Inc VAT
Quantity
1280 Items

  Delivery

We aim to despatch orders received prior to 2pm on the same day as ordered.

  Returns

30 day returns.

Description

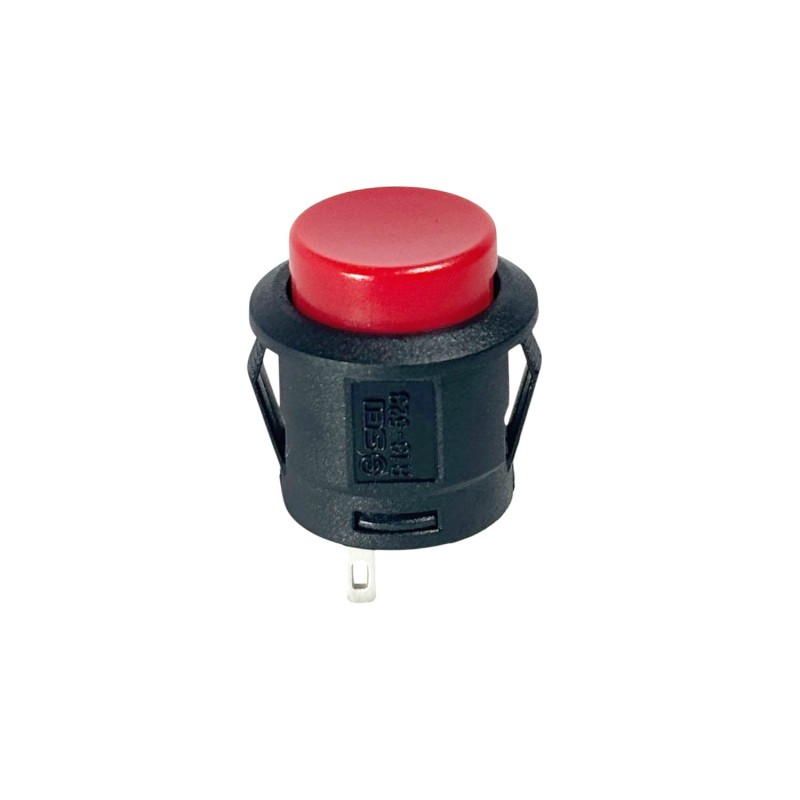

High quality push button switch from leading manufacturer SCI to fit 16mm panel cut out. 1.5A 250V AC rated. Momentary on, single pole single throw (SPST) function. This push button switch has a black body and red actuator without markings. Carries UL (American) approvals and complies with RoHS.



DC Rating : 6A 14V DC & 3A 28V DC

Product Details
SCI (Shin Chin)
R13-523A-BR
R13-523A-05-BR
1280 Items
New

Data sheet

Colour
Red
Panel Cut Out
16.0mm
Circuit
(On)-Off
Fixing
Snap In
Termination
Solder Terminals
Flame Retardancy
UL94 V2 (Lower)
Attachments
Download
R13-523A Drawing

R13-523A Push Button Switch Drawing

Download (85.79KB)
