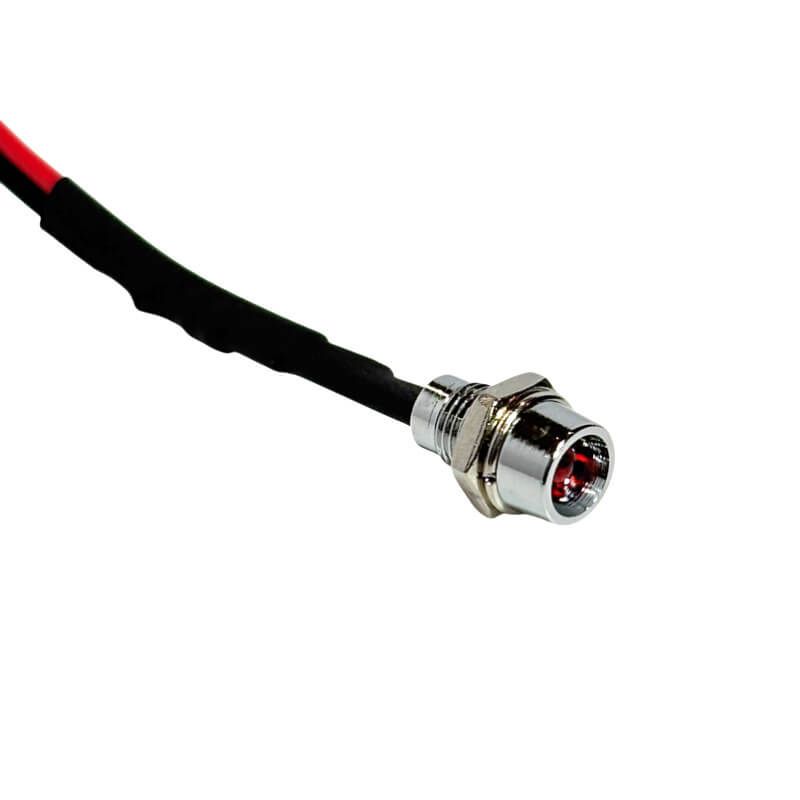

Red 5mm LED Indicator Lamp 12V Chrome Plated Brass
  • Red 5mm LED Indicator Lamp 12V Chrome Plated Brass
  • Red 5mm LED Indicator Lamp 12V | Chrome Plated Brass

Red 5mm LED Indicator Lamp 12V | Chrome Plated Brass

R9-90L-R
Rating

High-quality red 5mm LED indicator lamp for 12V DC panel mounting, featuring a 6mm chrome-plated brass bezel and body for a durable, professional finish. This compact panel mount indicator has a 5mm panel cut-out and is supplied with 100mm red and black 24AWG UL1007 wire leads for easy installation. Rated at 20mA with a brightness of 60mcd, 50° viewing angle and LED life of approximately 40,000 hours. Suitable for control panels, electrical equipment, automotive, marine and other 12V applications. RoHS compliant.

Volume discounts

Quantity Unit price (Ex VAT) You Save
25 £1.53 Up to £20.50
50 £1.29 Up to £53.00
100 £1.18 Up to £117.01
500 £1.06 Up to £644.96
£2.35

£2.35 Inc VAT
Quantity
Low UK stock
1 Item

  Delivery

We aim to despatch orders received prior to 2pm on the same day as ordered.

  Returns

30 day returns.

Description

Voltage : 12Vdc

Brightness : 60mcd

Viewing Angle : 50º

Life : Around 40,000 Hours

Rated Current : 20mA

Dielectric Strength : 500V, RMS 50Hz, 1min

Termination : 100mm Wire Leads 24AWG UL1007 Red and Black

Insulation Resistance : DC 500V 100M ohm Min.

Temperature Range : -20ºC to +80ºC

Product Details
SCI (Shin Chin)
R9-90L-R
1 Item
New

Data sheet

Voltage
12V
Colour
Red
Panel Cut Out
5.0mm
Fixing
Screw
Termination
Wire Leads
Attachments
Download
R9-90L-R Drawing

R9-90L-R Red 5mm Chrome LED Indicator Lamp 12V Drawing

Download (102.03KB)
