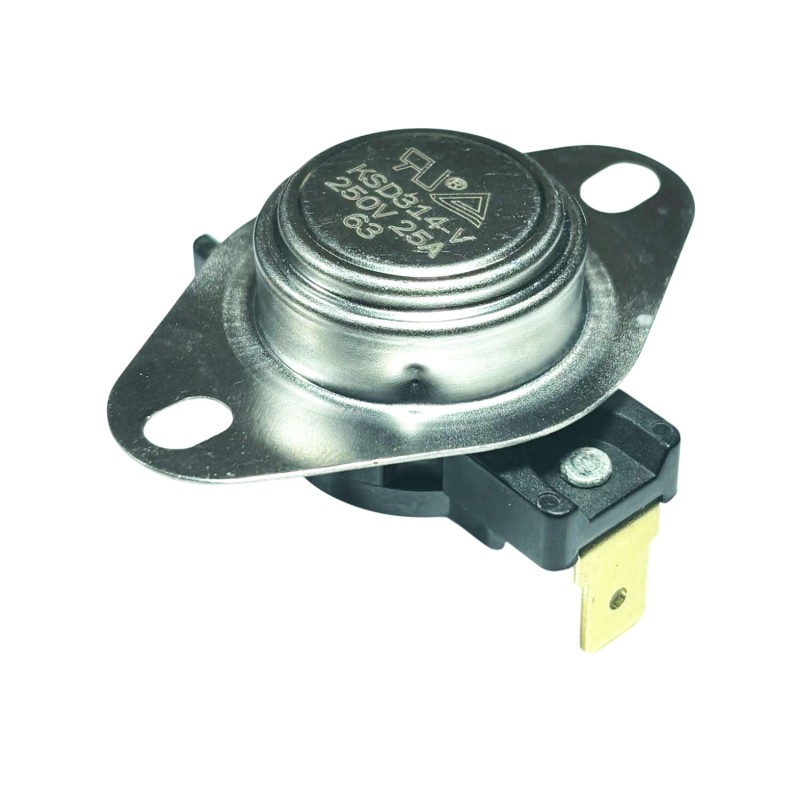

25A High Current 3/4" Thermal Cut Out 63ºC Normally Closed
  • 25A High Current 3/4" Thermal Cut Out 63ºC Normally Closed
  • 25A High Current 3/4" Thermal Cut Out 63ºC Normally Closed
  • 25A High Current Thermal Cut Out 63ºC N/C - Fixed Bracket

25A High Current Thermal Cut Out 63ºC N/C - Fixed Bracket

KSD314A-63AR-D
Rating

25A Bimetallic Switch (Thermal Cut Out) / Recessed Mount / 63 Degree C Automatic Reset / 25A 250V / N/C / Tolerance ±5 Degrees C / Fixed Recessed Bracket / 6.3mm QC Vertical Terminals / Circuit is Open on Temperature Rise at 63 Degrees / Reset Temperature 55 Degrees C / TUV & UL / RoHS / Bakelite Body / KSD314A-63AR-D. Other temperature settings available, please call to check availability.

Volume discounts

Quantity Unit price (Ex VAT) You Save
100 £3.73 Up to £372.13
£7.45

£7.45 Inc VAT
Quantity
10 Items

  Delivery

We aim to despatch orders received prior to 2pm on the same day as ordered.

  Returns

30 day returns.

Description

Carries European TUV and American UL approval at 25A 125Vac and 250Vac and complies with RoHS.

Product Details
Foshan Tongbao Corporation Limited
KSD314A-63AR-D
10 Items
New

Data sheet

Fixing
Screw
Current Rating
25A
Cap Material
Steel
Body Material
Bakelite
Attachments
Download
KSD314A-63AR-D Drawing

KSD314A-63AR-D 3/4" 25A Thermal Cut Out Drawing

Download (152.05KB)
