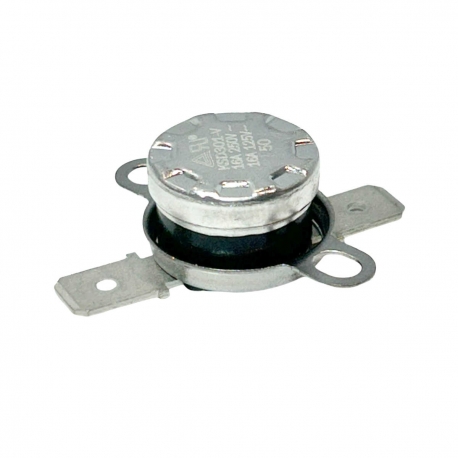

Thermal Cut Out 50°C N/C | Normally Closed Bimetallic Switch 16A 250V
  • Thermal Cut Out 50°C N/C | Normally Closed Bimetallic Switch 16A 250V
  • Thermal Cut Out 50°C N/C | Normally Closed Bimetallic Switch 16A 250V

Thermal Cut Out 50°C N/C | Normally Closed Bimetallic Switch 16A 250V

KSD301A-50AF-BTC
Rating

50 degree automatic reset thermal cut out rated at 16 Amp 250Vac and suitable for loads of around 3kw (maximum). Supplied with a loose bracket that can be rotated for mounting. This thermal cut out is normally closed (NC), meaning that it is normally in the on position. The thermal cut out will open (turn off) on reaching 50 degrees celsius and reset on temperature drop to 30 degrees celsius. Supplied with 6.3mm horizontal quick connect terminals and enclosed in a ceramic body. Carries TUV approval at 16A 250Vac and American UL approval at 16A 125Vac.

Volume discounts

Quantity Unit price (Ex VAT) You Save
25 £1.07 Up to £14.44
50 £0.94 Up to £35.58
100 £0.85 Up to £80.44
600 £0.74 Up to £544.50
£1.65

£1.65 Inc VAT
Quantity
520 Items

  Delivery

We aim to despatch orders received prior to 2pm on the same day as ordered.

  Returns

30 day returns.

Description

Electrical Rating : 16A 250V

Tolerance : ±3 Degrees C on Open and ±7 Degrees on Close

Material : Ceramic

Mounting : Screw with Fixing Hole Centres at 24mm

Circuit : N/C Normally Closed

Connection : 6.3mm Horizontal Quick Connect Terminals

Approvals : TUV, UL, RoHS

Product Details
Foshan Tongbao Corporation Limited
KSD301A-50AF-BTC
520 Items
New

Data sheet

Termination
6.3mm QC Terminals
Current Rating
16A
Switching Cycles (10A 250V)
100,000
Switching Cycles (16A 250V)
60,000
Cap Material
Aluminium
Body Material
Bakelite
Contact Resistance
Less Than 50 m Ohm
Maximum Ambient Temperature
100 Degrees C
Fixing Hole Centres
24mm
Attachments
Download
KSD301A-XXAF-BT Drawing

KSD301A-XXAF-BT Drawing

Download (119.9KB)
