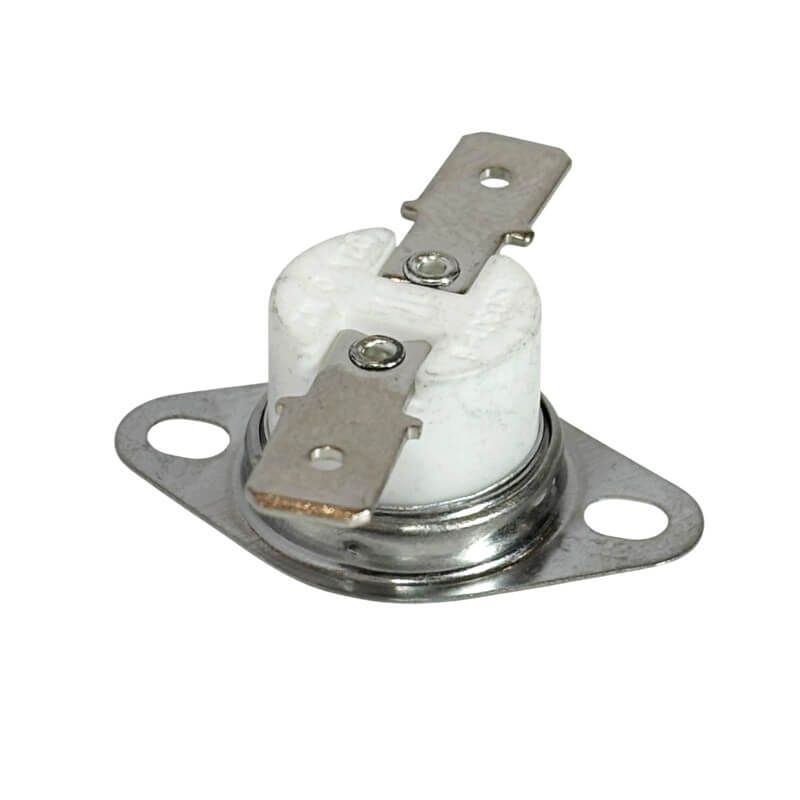

125°C Automatic Normally Closed Thermal Cut-Out with Fixed Bracket
  • 125°C Automatic Normally Closed Thermal Cut-Out with Fixed Bracket

Thermal Cut Out 125ºC N/C (Fixed Bracket)

KSD301A-125AF-BQC
Rating

Automatic normally closed (NC) thermal cut-out rated at 125°C, designed to protect electrical equipment from overheating. This bimetal thermal protector automatically opens the circuit when the preset temperature is reached and automatically resets once the device has cooled. Supplied with a fixed mounting bracket for quick installation, it is ideal for motors, transformers, battery chargers, heating appliances, power supplies, industrial equipment and OEM applications. Manufactured from high-quality materials for reliable temperature protection and long service life.

Volume discounts

Quantity Unit price (Ex VAT) You Save
25 £1.04 Up to £14.00
50 £0.91 Up to £34.50
100 £0.82 Up to £78.00
£1.60

£1.60 Inc VAT
Quantity
250 Items

  Delivery

We aim to despatch orders received prior to 2pm on the same day as ordered.

  Returns

30 day returns.

Description

Electrical Rating : 16A 250Vac (3kw)

Operation : Normally Closed (set in the "on" position at room temperature)

Operating Temperature : 125°C (Circuit Open Temperature)

Reset Temperature : 110°C (Circuit Close Temperature)

Fixing Hole Centres : 24mm (M3)

Bracket Type : Fixed

Range : 1/2 Inch Bimetallic Thermostat

Termination : 6.3mm Horizontal Terminals

Body Material : Ceramic

Approval : TUL (16A 250Vac), UL (16A 125Vac), RoHS

Product Details
Foshan Tongbao Corporation Limited
KSD301A-125AF-BQC
250 Items
New

Data sheet

Termination
6.3mm QC Terminals
Current Rating
16A
Switching Cycles (10A 250V)
100,000
Switching Cycles (16A 250V)
60,000
Cap Material
Aluminium
Body Material
Bakelite
Contact Resistance
Less Than 50 m Ohm
Maximum Ambient Temperature
140 Degrees C
Fixing Hole Centres
23.8mm
Reviews

No customer reviews for the moment.

Write your review

Thermal Cut Out 125ºC N/C (Fixed Bracket)

Thermal Cut Out 125ºC N/C (Fixed Bracket)

Automatic normally closed (NC) thermal cut-out rated at 125°C, designed to protect electrical equipment from overheating. This bimetal thermal protector automatically opens the circuit when the preset temperature is reached and automatically resets once the device has cooled. Supplied with a fixed mounting bracket for quick installation, it is ideal for motors, transformers, battery chargers, heating appliances, power supplies, industrial equipment and OEM applications. Manufactured from high-quality materials for reliable temperature protection and long service life.
