  • New
Waterproof Push Button Switch, On-Off
  • Waterproof Push Button Switch, On-Off
  • Waterproof Push Button Switch, On-Off
  • Waterproof Push Button Switch, On-Off
  • Waterproof Push Button Switch, On-Off

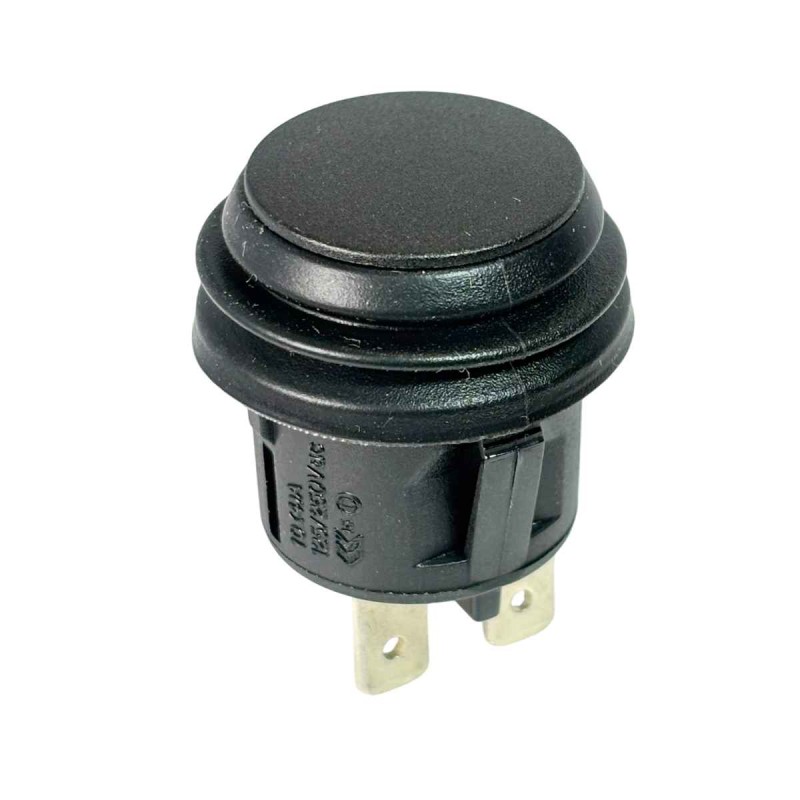

Waterproof Push Button Switch, On-Off

R13-527D2
Rating

Waterproof Push Button Switch / SPST / On-Off / Black / No Print / 10(4)A 250Vac / 20mm / 4.8mm Tab Terminals / Waterproof to IP 65 / UL & ENEC Approvals / RoHS / R13-527D2.

Volume discounts

Quantity Unit price (Ex VAT) You Save
25 £1.57 Up to £7.00
50 £1.39 Up to £23.00
100 £1.30 Up to £55.00
500 £1.11 Up to £370.00
£1.85

£1.85 Inc VAT
Quantity
402 Items

  Delivery

We aim to despatch orders received prior to 2pm on the same day as ordered.

  Returns

30 day returns.

Description

High quality push button switch from leading manufacturer SCI to fit the standard 20mm panel cut out. 10A 250V AC rating to suit most standard applications. On-Off, single pole single throw (SPST) function. This round push button switch has a black body and black button and has no marking on the button. Carries VDE (European) and UL (American) approvals and complies with RoHS.



This switch uses a concertina rubber cover to provide a high degree of waterproof protection (IP 65) making this suitable for marine applications and other applications where water may come into contact with the switch.



Suitable for all voltages including; 12 volt, 24 volt, 120 volt and 240 volt. Low voltage ratings are ; 20A 12VDC, 10A 28VDC.



Operating Temperature : -25ºC to +85ºC

Product Details
SCI (Shin Chin)
R13-527D2
402 Items
New

Data sheet

Colour
Black
Panel Cut Out
20.2mm
Circuit
On-Off
Fixing
Snap In
Termination
4.8mm QC Terminals
Current Rating
10A
IP Rating
IP65
Attachments
Download
R13-527D2 Drawing

R13-527D2 Push Button Switch Drawing

Download (308.89KB)
Reviews

No customer reviews for the moment.

Write your review
