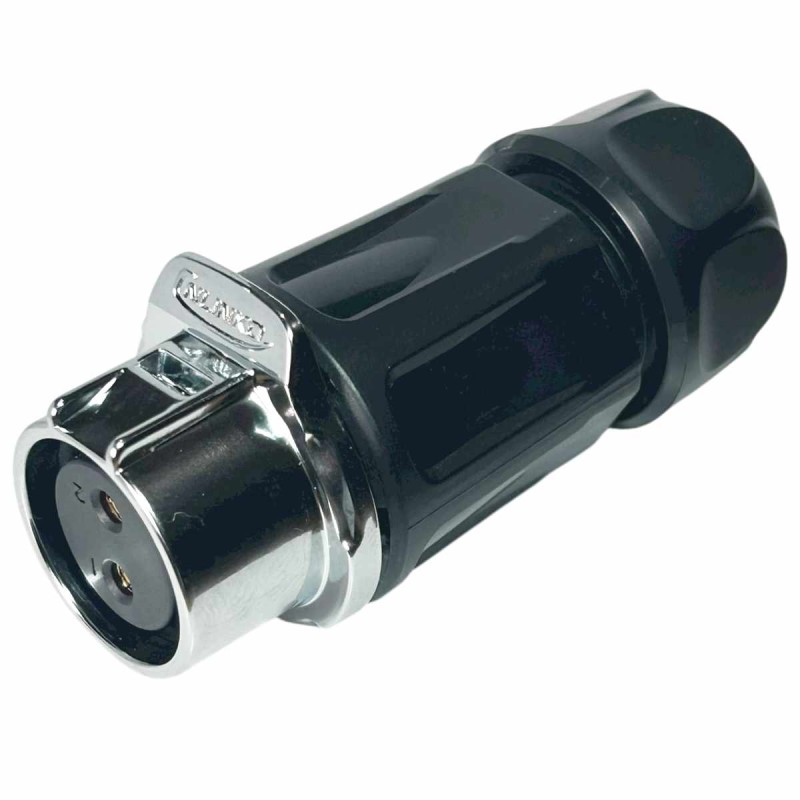

Waterproof circular socket inline connector with an IP rating of IP67. This is a locking push in inline 2 pole connector with solder termination which mates with our LP-20-C02. Supplied with rear cable gland for 8.5mm-11mm cables (alternatives available online). Electrical rating of 20A 500V and carrying UL and CE approval. High quality construction with tough PBT body and gold plated brass contacts.
Delivery
We aim to despatch orders received prior to 2pm on the same day as ordered.
Returns
30 day returns.
IP Rating : IP67
Temperature Range : -40ºC-80ºC
Materials : PBT and Chrome Plated Zinc
Seal Ring : Silicone
Electrical Contacts : Gold Plated Copper
Contact Resistance : 5.0 mΩ
Dimensions : 65mm x 32mm
Termination : Solder
Wire Range : 14-12 AWG (2.5mm2-4mm2)
Cable Gland : 8.5-11mm Cables
Certification : UL, CE, RoHS
Typical applications include; solar energy, garden, outdoor, internal and external cabling, marine applications, stage and lighting, medical.
Data sheet
