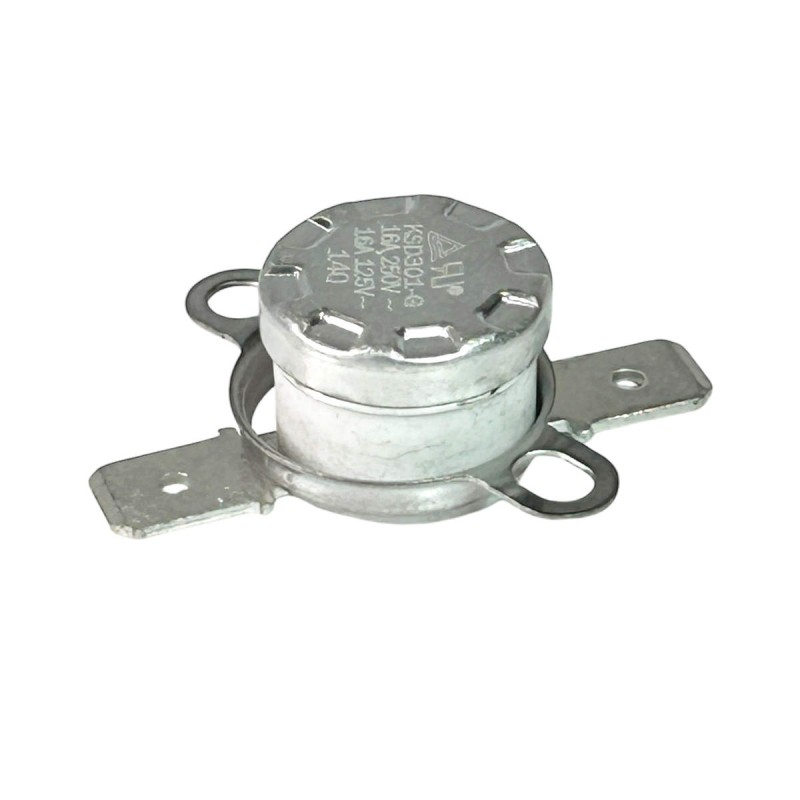

Thermal Switch 70ºC NC (Normally Closed)
  • Thermal Switch 70ºC NC (Normally Closed)
  • Thermal Switch 70ºC NC (Normally Closed)

Thermal Switch 70ºC NC (Normally Closed)

KSD301A-70AF-BT
Rating

Bimetallic Switch (Thermal Cut Out) / Surface Mount / 1/2” / Auto Reset / 16A 250V / N/C / Tolerance ±3 Degrees C on Open and ±7 Degrees on Close / Loose Bracket Type BT / 6.3mm Horizontal Term / 70 Degrees C Normally Closed Thermal Switch / Circuit is Open on Temperature Rise at 70 Degrees C / Reset Temperature 50 Degrees / TUV & UL Approved / RoHS / Bakelite Body / KSD301-7.0/16BT15S20-S.

Volume discounts

Quantity Unit price (Ex VAT) You Save
25 £1.04 Up to £14.00
50 £0.91 Up to £34.50
100 £0.82 Up to £78.00
600 £0.72 Up to £528.00
£1.60

£1.60 Inc VAT
Quantity
1424 Items

  Delivery

We aim to despatch orders received prior to 2pm on the same day as ordered.

  Returns

30 day returns.

Description

16 Amp 250Vac rated automatic reset thermal cut out suitable for loads of around 3kw (maximum). For currents over 12A please ask about our ceramic base version. Supplied with a loose bracket that can be rotated for mounting. This thermal cut out is normally closed (NC), meaning that it is normally in the on position. The thermal cut out will open (turn off) on reaching 70 degrees celsius and reset on temperature drop to 50 degrees celsius. This is a 1/2 inch thermal cut out, not to be confused with the higher rated 3/4 inch thermal cut outs more suitable for higher loads typically found in more powerful power showers. Supplied with 6.3mm horizontal quick connect terminals and   enclosed in a bakelite body. Carries TUV approval at 16A 250Vac & American UL approval at 16A 125Vac and complies with RoHS.

Product Details
Foshan Tongbao Corporation Limited
KSD301A-70AF-BT
1424 Items
New

Data sheet

Termination
6.3mm QC Terminals
Current Rating
16A
Switching Cycles (10A 250V)
100,000
Switching Cycles (16A 250V)
60,000
Cap Material
Aluminium
Body Material
Bakelite
Contact Resistance
Less Than 50 m Ohm
Maximum Ambient Temperature
140 Degrees C
Fixing Hole Centres
24mm
Attachments
Download
KSD301A-XXAF-BT Drawing

KSD301A-XXAF-BT Drawing

Download (119.9KB)
Reviews

No customer reviews for the moment.

Write your review
